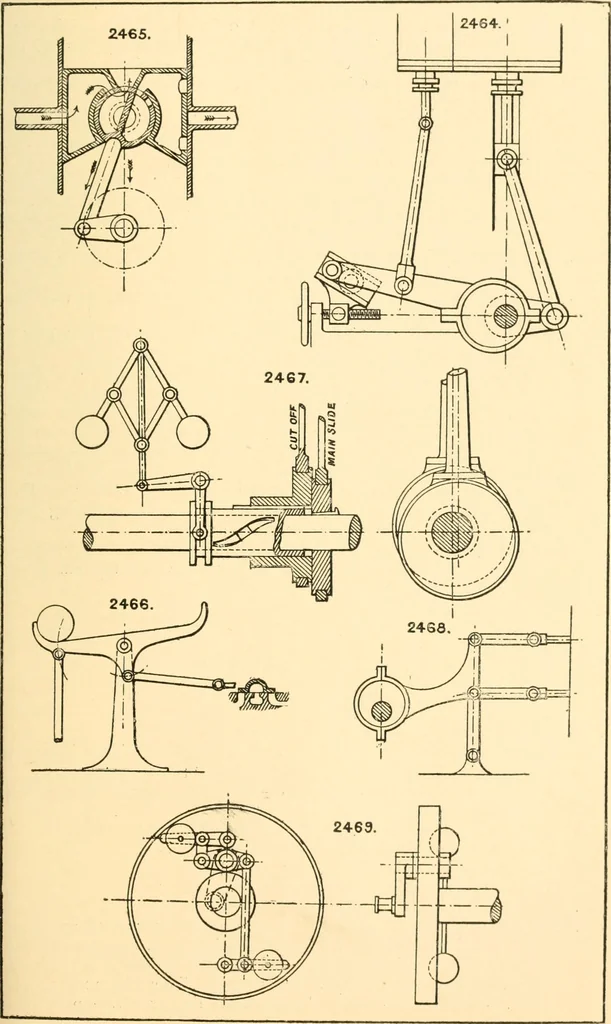

e, which has a screw movement on the pin fixed to thecrank shaft; a parallel feather on the sleeve revolves the cut-(ffeccentric, and varies the travel of the cut-off valve. The slidevalves aie of the form of No. 1456. 2468. Eccentric motion to operate two slide valves, 2469. Crank shaft governor.… … 3l6 TEE ENGINEERS SKETCH-BOOK. 2470. Single eccentric adjustable cut off for a Fink link gear; plain D valve gives eqnal distribution of steam at any cut-off; thetravel of the valve is regulated by the hand wheel. 2471. Cam-bar movement for operating two valves used for hydraulic starting valves.…
