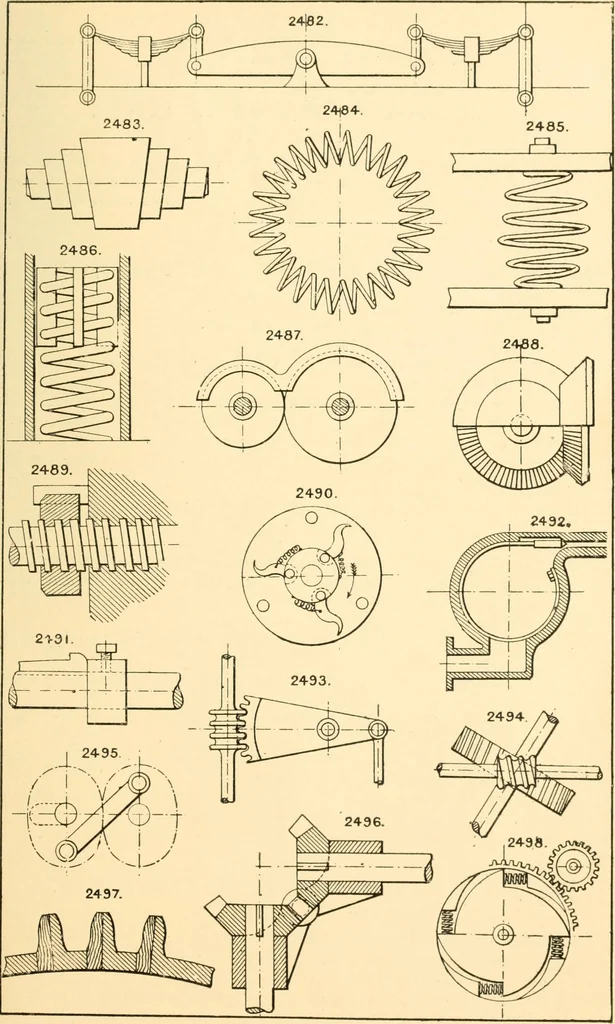

See also p. 186.) 2493. Circular rack (revolving) and sector, used on governors. 2494. Skew worm and wheel gear. 2195. Oval gear, linked together. 2196. Mitre gear, angle of shafts variable. The two bearings are hinged together on the pitch line of the pair of wheels. 2497. Wood-faced siour gear,… … THE ENGINEERS SKETCH-BOOK. 2499. Bevil gear, with roller teeth in one wheel of the pair, 2500. Circular rack and pinion gear. The rack can revolve inde- pendently of the vertical movement;. Section 85.-.TRANSIVIISSION OF POWER, (See also ^. 192,) 2501. Hydraulic transmission by two motors (rotary),…
