The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 47

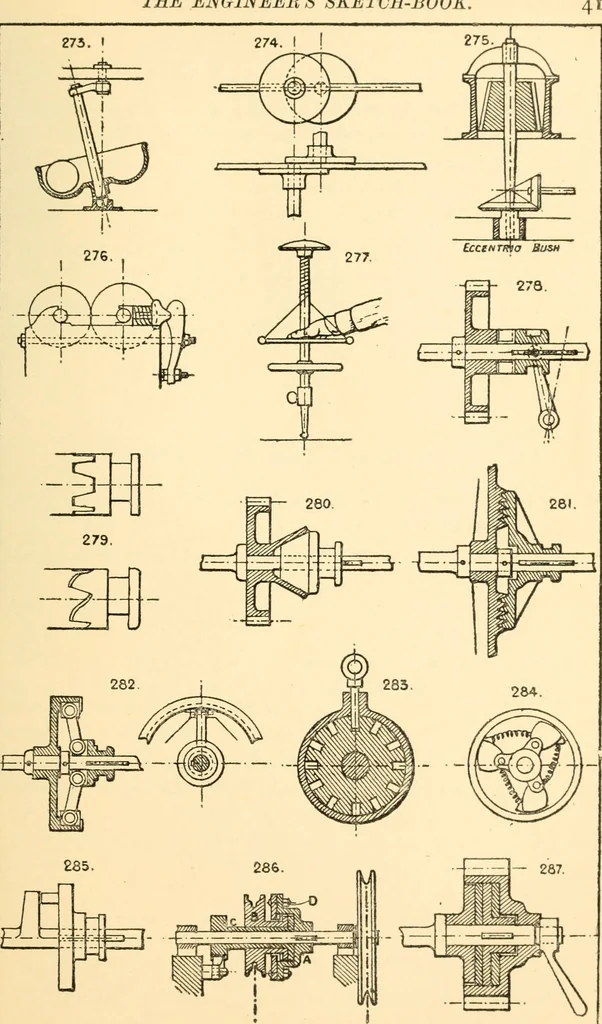

eing of the ratchet form.Several other forms of this clutch are in use. Edwards, Stevensand Majors, and others may be consulted. 287. Disc friction clutch, with intermediate leather discs and screw clamping appliance, only the central disc is keyed to the shaft,the others run loose. Mather and… … 42 THE ENGINEERS SKETCH-BOOK. Section 16.—COUPLINGS FOR SHAFTING. 288. Ordinary flanged coupling, usually made so that the end of the shaft forms a spigot joint with the opposite half of clutch. 289, 290, 291. Sleeve couplings. See also No. 1430 and Section 57. Butlers patent frictional coupling,…
