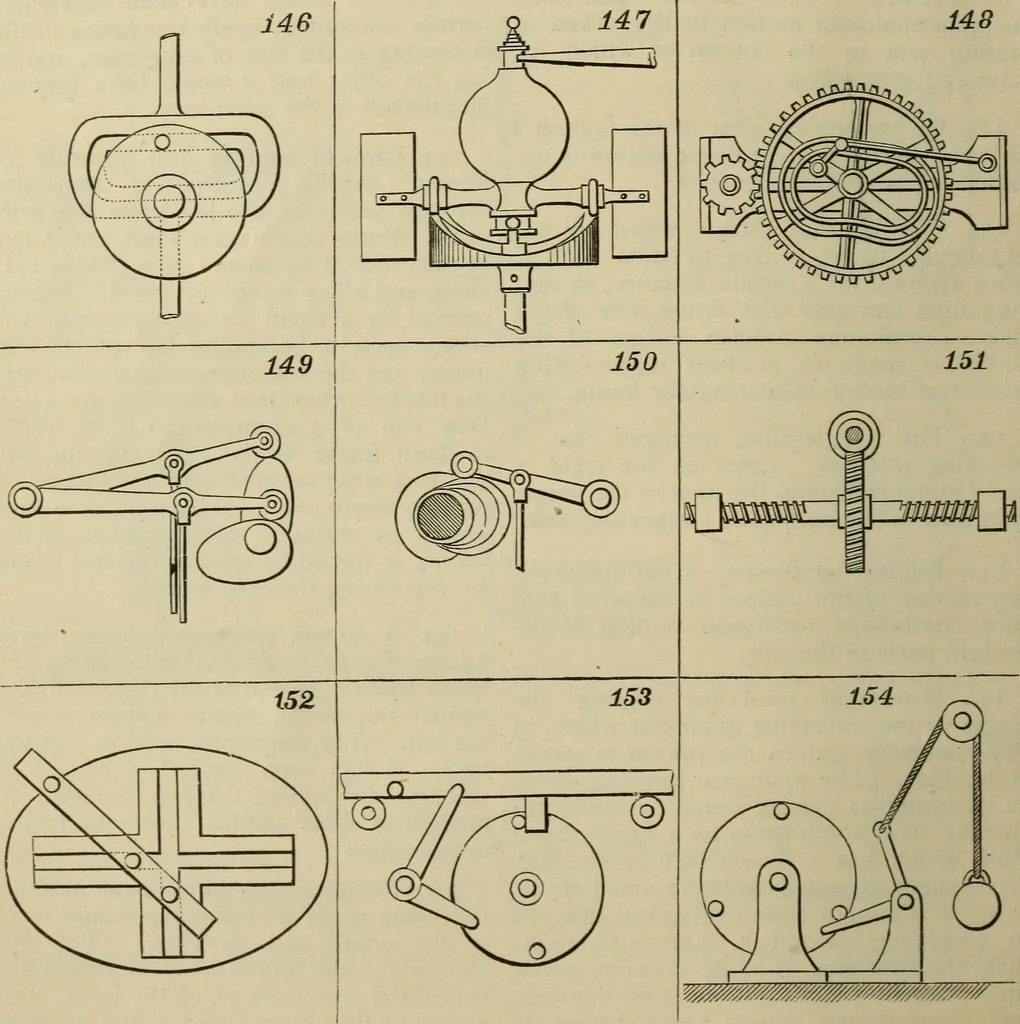

atthe left. It is frequently used in childrenstoys. It has been applied in France to amachine for raising sunken vessels ; alsoapplied to ships pumps, three-quarters of acentury ago. 145. Reciprocating curvilinear motion ofthe beam gives a continuous rotary motionto the crank and fly-wheel. The… … ■^^mmm^^^mmmmw Mechanical Movements. 41 146. Continuous rotary motion of the diskproduces reciprocating rectilinear motion ofthe yoke-bar, by means of the wrist or crank-pin on the disk working in the groove of theyoke. The groove may be so shaped as toobtain a uniform reciprocating…
