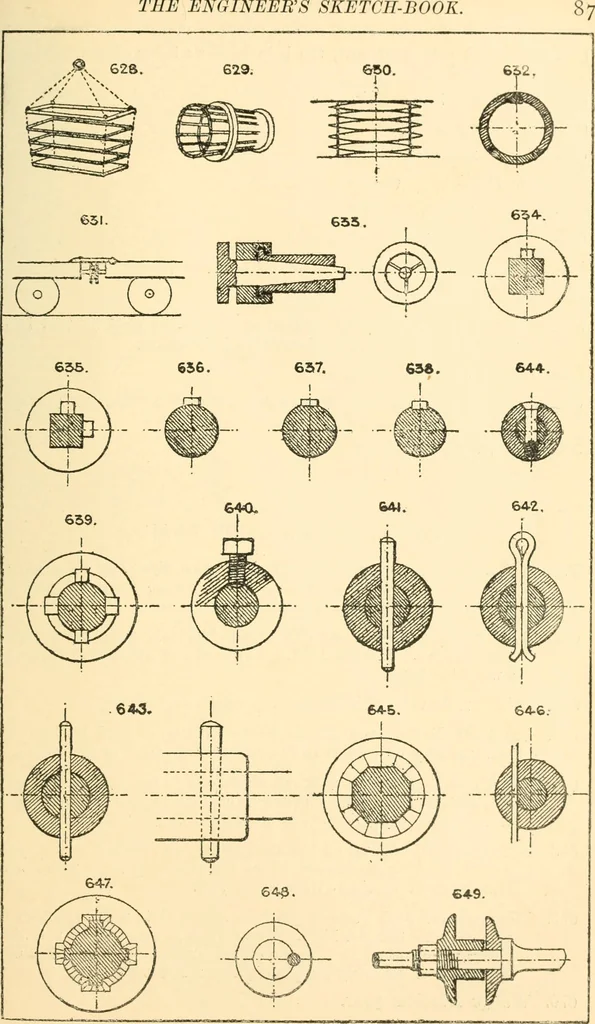

rough shaft and boss of wheel. 645. Octagonal shaft of cast iron, with four keys, or the four keys may be cast on shaft. 646. Cotter or pin through side of shaft. 647. Large wheels are sometimes wedged with iron and wood wedges all round on a square or octagonal shaft having feathers cast on it.… … 88 TEE ENGINEERS SKETCH-BOOK. 650. Screwed end and nut, the hole in wheel being square, or round and fitted with key. 651. Gib head taper key. 652. Plain taper key. 653. Taper round pin. 654. 655. Split pins (round). 656. Cotter and split pin. 657. Cotter and nut. 658. Dovetail taper key, or fixing…
