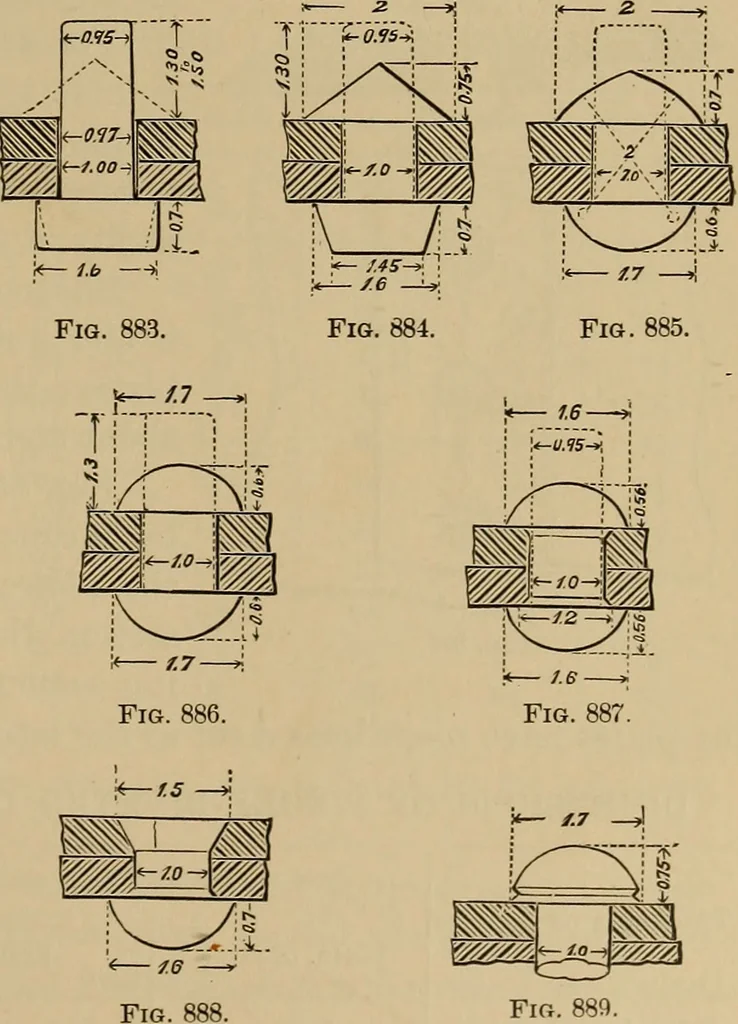

Fig. 889. Riveted Joints^ as used in the Construction of Boilers.—Figs. 883-889 areforms of rivets with their proportions referred to the diameters next the heads.The thickness of the plate connected by rivets will be given in tables here- 384 MACHrNE DESIGN AND MECHANICAL CONSTHUCTIONS.
