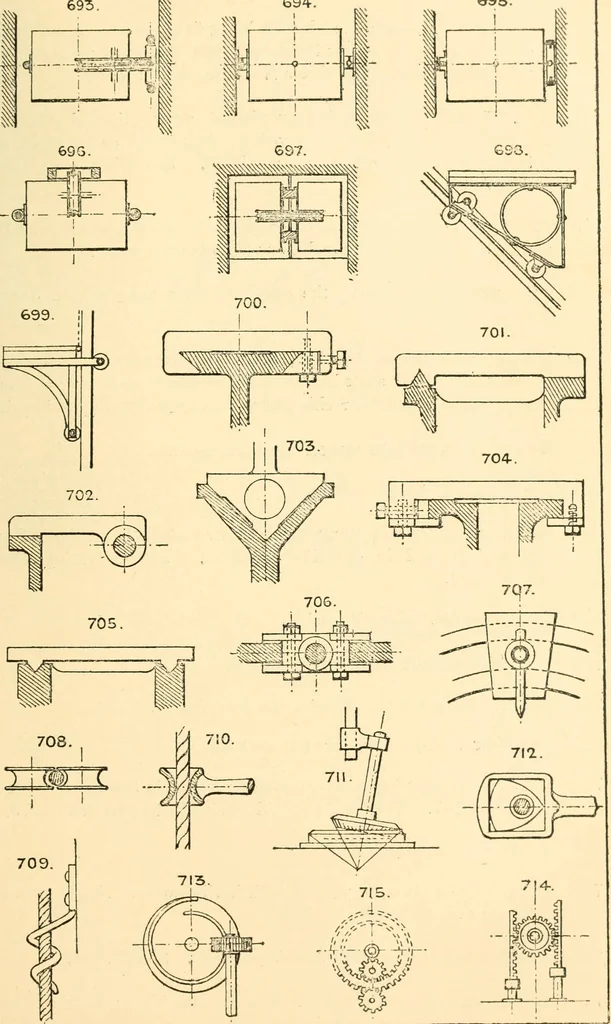

me section as No. 700. ROPE GUIDES. 708. 709, & 710; in 709 the rope can be threaded without passing the endthrough. Section 40.—GEARING, VARIOUS DEVICES IN (nototherwise classed). 711. Conical rotatory gear. Applied to reaping machines. See also Pan Screen, No. 1264. 712. Triangular eccentric,… … 94 THE ENGINEERS SKETCH-BOOK. 716. Eccentric gearing; the wheel A being fixed on a crank pin in thedriving wheel B, drives the dotted gear at a speed proportionateto the diameters of the wheels A and the driven wheel 717 & 71H. Forms of epicyclic or planet gear. Several modes ofdriving these…
