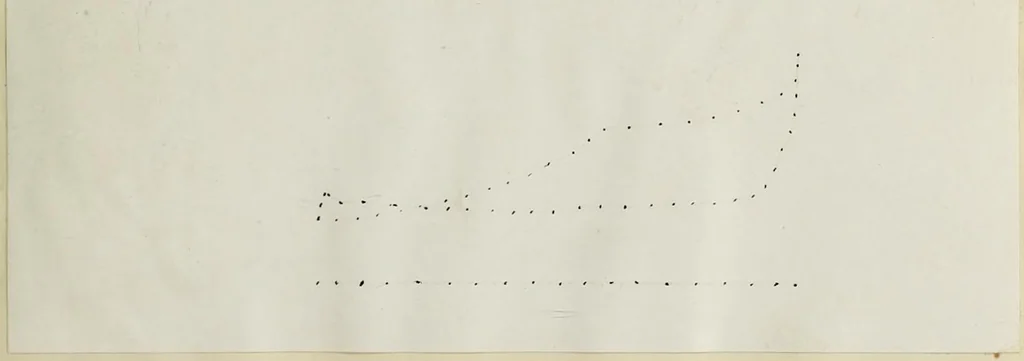

ds, and this seemed topoint to the fact that the engine will easily come up to itsrating, when the exhaust valve gear has heen redesigned andstrengthened. 11. High-pressure cylinder. Head end, 80# spring. 225 R.P.M. CARD No. 1. High-pressure oylinder,80# spring, CARD No. 2. Crank end,225 R.P.M.… … High-pressure cylinder.80# spring. CARD No. 6. Crank end.240 R.P.M. Low-pressure cylinder. Head end. 40# spring, 240 R,P.M, CARD No, 7, Low-pressure cylinder. Crank end, 40# spring. 240 H.P.M. CARD No. 8. 15. CONCLUSION. When this subject was chosen as a thesis,it was thewriters intention to have…
