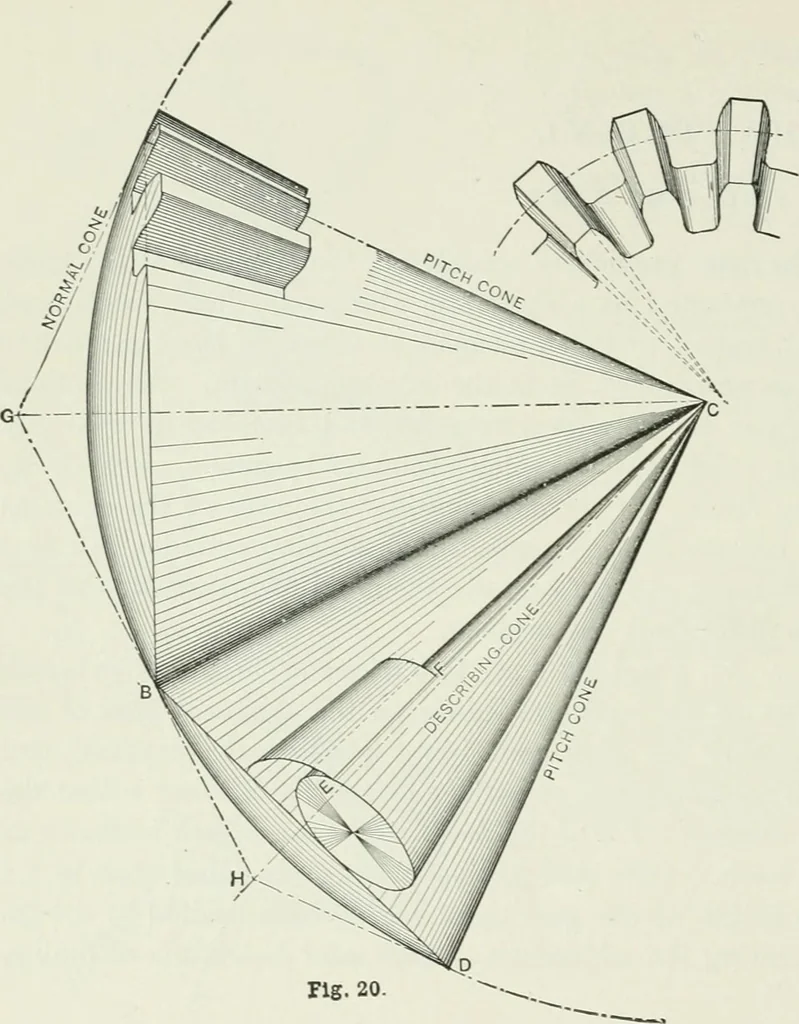

thin, a spherical h>^ocycloid. The dedendum, or surface of the tooth lying within thepitch cone A C B, was described by the element E F C of the describing cone, which is shown asgenerating the addendum of the pinion tooth. Only that portion of the surface described by E Fwould be used for the… … is not shown; but the diameter ofits base would be governed by lawssiniilar to those already consideredfor limiting the diameters of rollingcircles, Art. 32, page 18. 58. Character of Curves employedin Bevel Gearing, The cycloidalBEYEL TOOTH has already been con-sidered in the previous article,…
