Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1889)

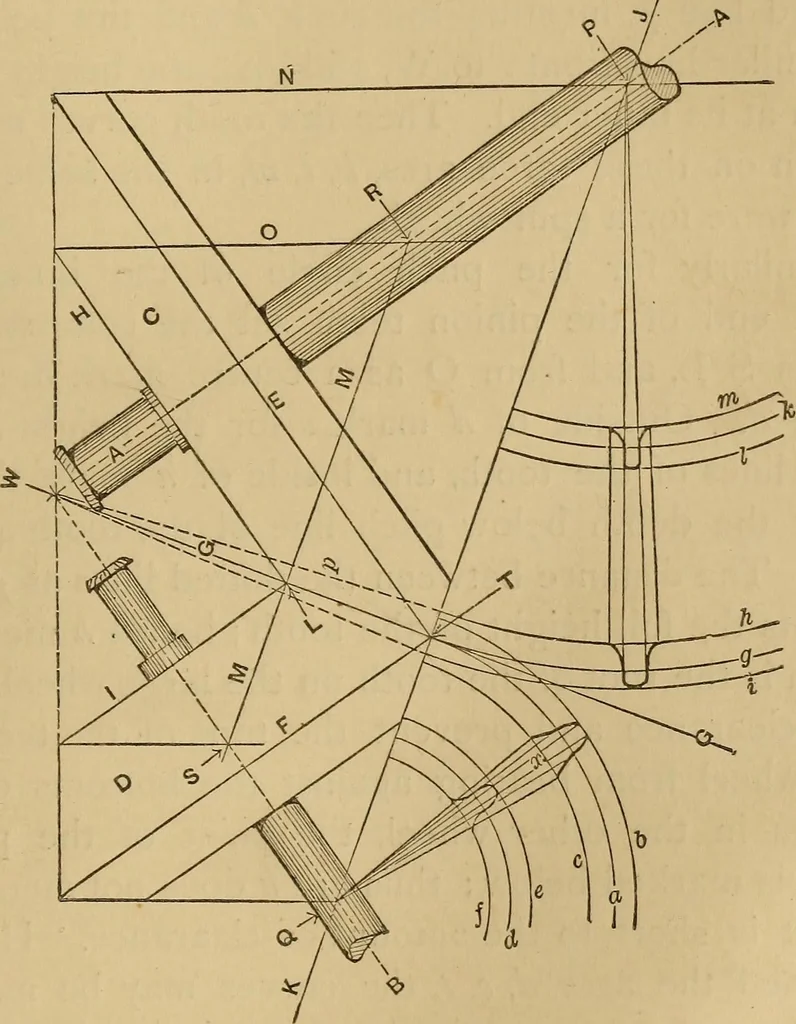

and below the pitch line G G. At a rightangle to G G draw the line J K ; and from where thisHne meets B, as at Q, mark the arc a, which will repre-sent the pitch circle for tlic large diameter of the pinion DRAWING GEAR WHEELS. 205 D. [The smallest wheel of a pair of gears is termedthe pinion.]… … Fig. 242. and i, arc g representing the pitch circle, t the height,and h the depth of the tooth. On these arcs drawthe proper tooth curves in the same manner as forspur wheels; that is, obtain the curves by the construe- ^q5 mechanical drawing self-taught. tion shown in Figures 237, or by those in…
Mechanical drawing
