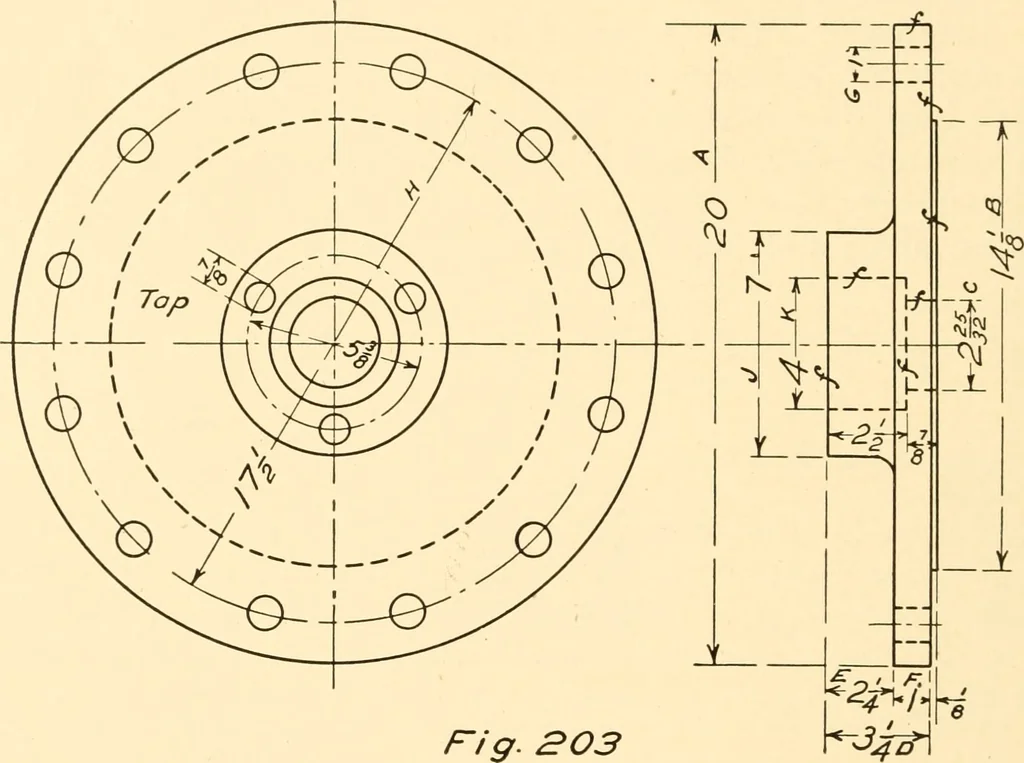

l sizes and are Vie inch larger than actualdiameter. Thus a 2-inch shaft is l^Vie^ actual diameter. Com-mon lengths vary up to 24 feet. Special shafts have to be forgedof steel suitable for the particular purpose. A shaft drawing isshown in Fig. 204 with the positions of the dimensions. 84… … Fig. B03 per foot of length as, ^A per /ooi. When the slope is con-siderable it may be given as 1:1, indicating a 45° slope. In othercases the angle may be given in degrees. In addition there are
