Babbit, Arthur B · New York, H. Holt and company · leaf 142

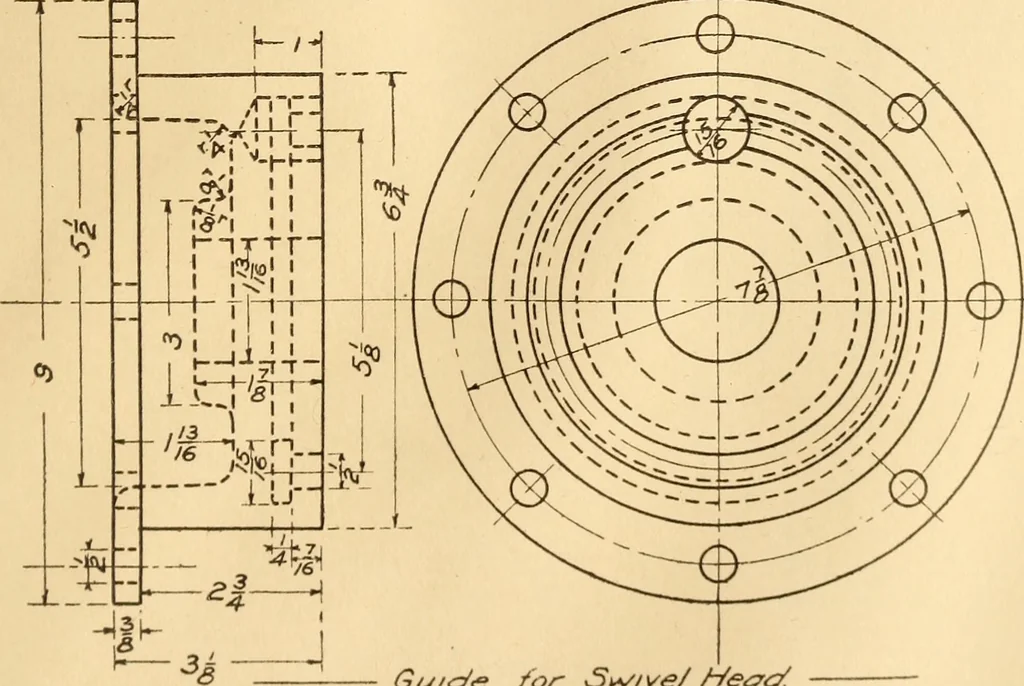

Ga/c/<s for Sh^/ ve/ Heoc/. Plate 12 EXTRA PLATE Copy the two views shown in one of the rectangleson pages 133 and 134. Make one of the views asectional view. INKING When inking, follow the order given on page 124. SECTIONAL VIEWS 133
Mechanical drawing
