Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 117

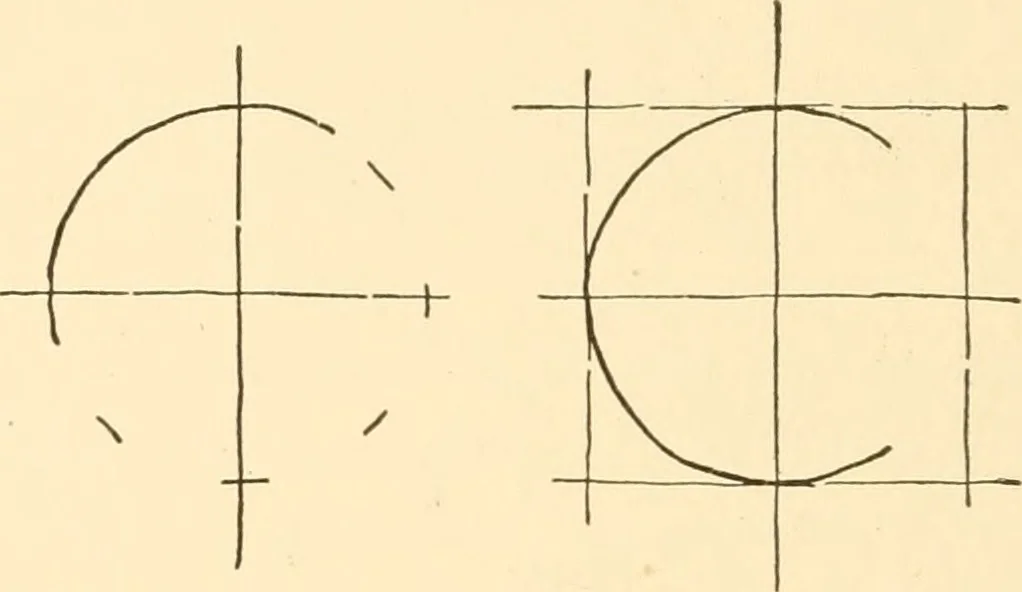

G Making a Sketch. — To make a sketch the following ordermay be pursued. First examine the object, determine the num-ber of views necessary completely to define it, and observe theproportions. Then proceed to sketch very lightly, locatingcenter lines and blocking in the limits for all views.… … Fig. 2 6^ F/g.26S marking points and drawing from one point to another. Viewsshould be blocked in completely with straight lines regardless ofthe number of curves and circle arcs. To sketch a circle draw center lines at right angles (Fig. 263),space off radii, as shown in Fig. 264, on the center…
