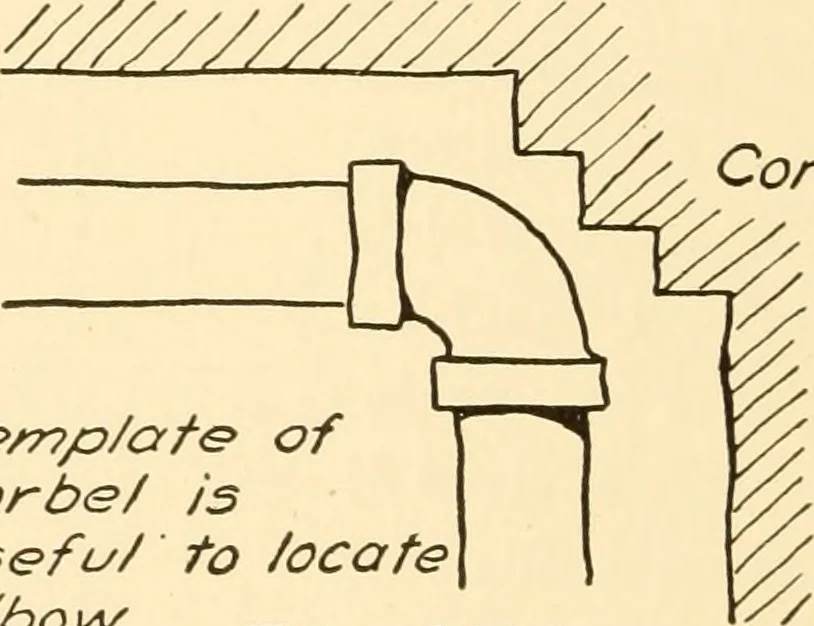

ng of a part, especiallywhen the sketches must be hastily made, as the two sketchesresult in less confusion than when combined in one view. When sketches are made in connection with diagrams for thetransmission of power, or amechanism of any sort, the com-putations should be includedwith the… … Corbel 7b/77p/af<s> ofCorbe/ isussfu/ to /ocate ^* Fig. 272 must be considered as well as center line distances. When locat-ing shaft hangers, or constructions to be fastened to a wall orceiling, the surroundings such as parts of the permanent struc-ture, like beams or corbeling of the brick…
