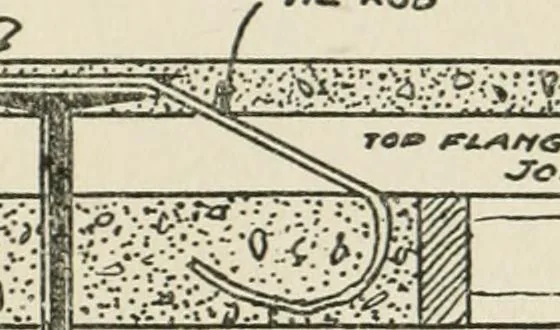

12is to take care of any negative bending momentsdue to the girder support at this point. This isnecessary when a granolithic or any solid cementor stone finish floor is used, preventing abso-lutely thereby unsightly cracks. Fig. 12 showsthe position of the bar when the joists are placedwith their… … t¥000 ^i.VG my. m Tig. 12. Tie-Eod Used in Vaughan Systemu intervals of about 20 feet or at the intersection of interiorcolumns, two joists can be separated by a space of about8 inches or a full width of a column if desired. A singleboard placed underneath this space and supported byprops—the…
