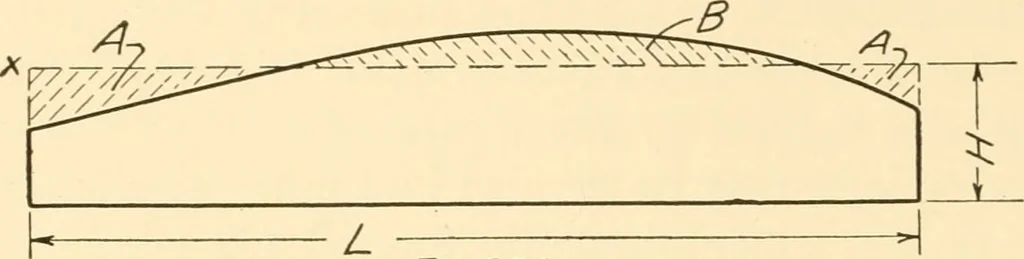

qual to the radius of the arc.With irregular shapes the area is sometimes divided approxi-mately into regu-lar figures, thedimensions forwhich are ob-tained by apply-ing the scale tothe drawing. This is illustrated in Fig. 274 where the dash linex-x is drawn so that the area B appears to be equal… … r/g. sr^
