Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 135

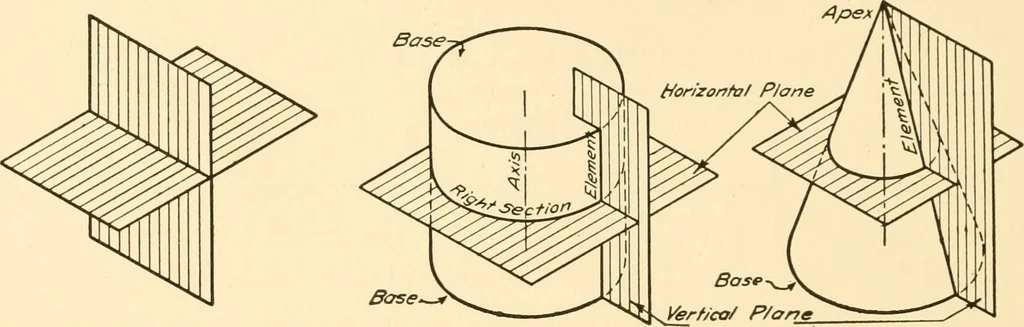

the cone.Note that all the elements of a cylinder are parallel, and that allthe elements of a cone pass through the apex. Intersecting planes, elements, and cut sections are the basisfor finding lines of intersection of surfaces. 117 118 ESSENTIALS OF DRAFTING Intersection of a Vertical Prism and a… … Rg ^67 Fig. 286 Fig- 289 edge AB oi the square prism pierces the front face of the tri-angular prism at point B^. The front and side views of thispoint may be obtained by projection and are shown at B^ and B^.Note that the front view shows the intersection of the edge EF of the square prismwith a…
Mechanical drawing
