Structural mechanics; comprising the strength and resistance of materials and elements of structural design (1905)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson. [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 71

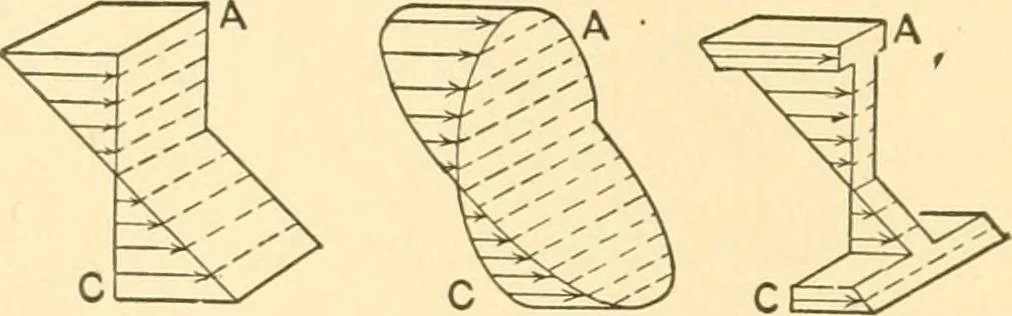

o excess), thelongitudinal unit stresses between the particles will vary as thelengthening and shortening of these fibres, that is, as the dis-tance from the point of no stress. Hence, at any section, thedirect stress is uniformly varying, with a maximum tension on 56 STRUCTURAL MECHANICS. the… … Fig. 21 63. Neutral Axis.—The arrows in Figs. 20, 21 may be takento represent the unit stress at each point of the cross-section,varying as the distance from the plane of no stress, and constantin the direction z. To locate the point or plane of no stress orneutral axis for successive sections: Let…
