Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 137

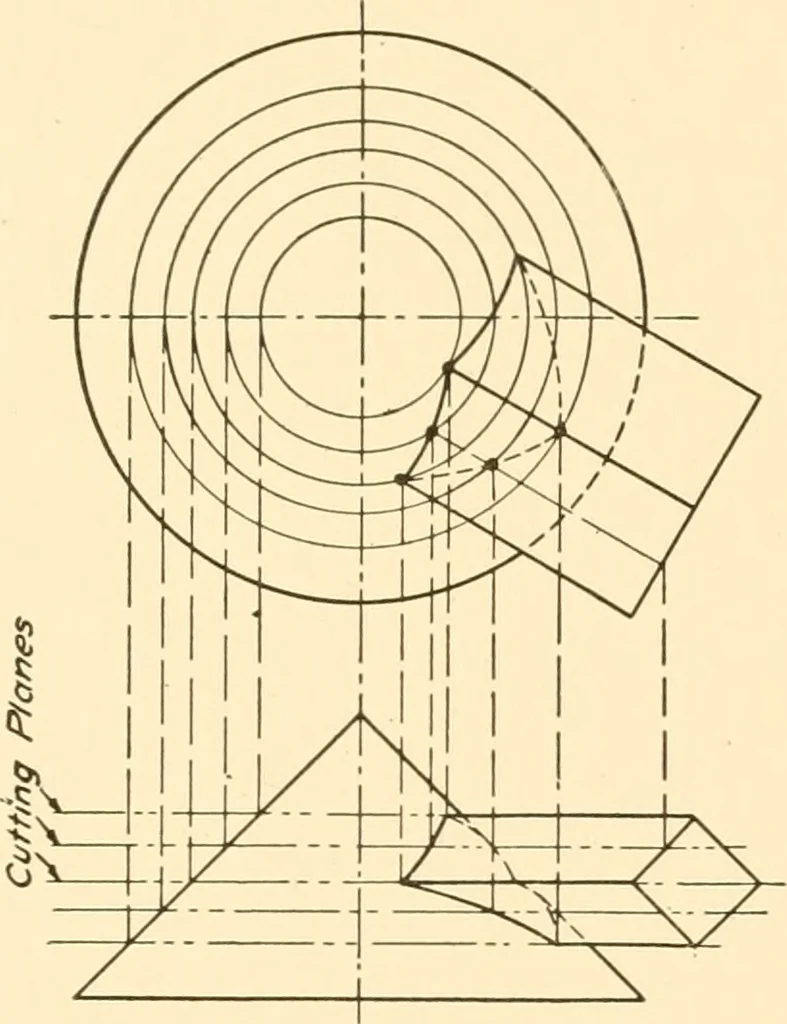

d should be consideredseparately. Intersecting Cylinders. — Two in-tersecting cylinders are shown in Fig.292. Divide the small cylinder intoequal parts and then pass planeswhich will cut elements from bothcylinders. The planes w, x, y, and zcut elements 1,2,3, and ^ from thecylinders. The points in… … Fig. ^93
Mechanical drawing
