Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 166

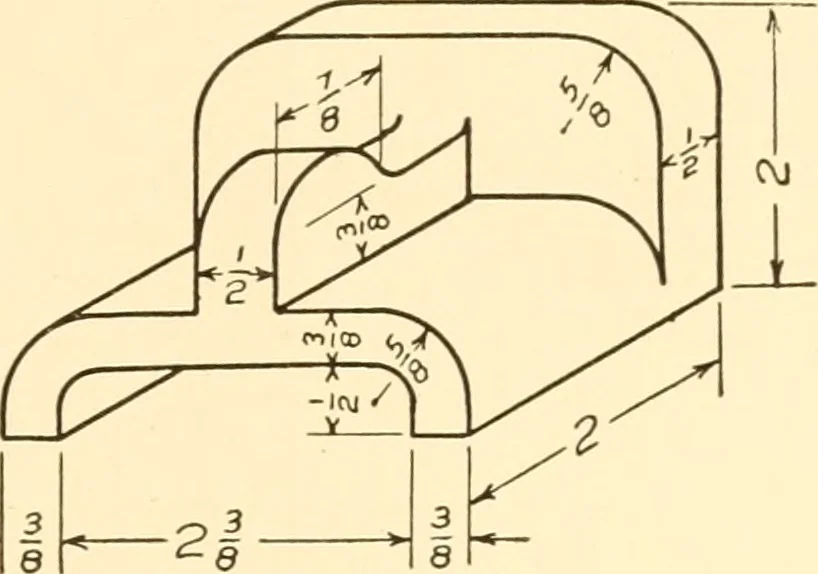

VIEW \ -Is- r/g. 36/ QUESTIONS, PROBLEMS, AND STUDIES 149 73. Space 5V2 X 7. Draw three views of the object shownin Fig. 354. 74. Space 5V2 X 1. Draw three views of the object ^hownin Fig. 355. 75. Space 5V2 X 1. Drawthree views of the object shownin Fig. 356. 76. Space 5V2 X 1. Drawthree views of…
Mechanical drawing
