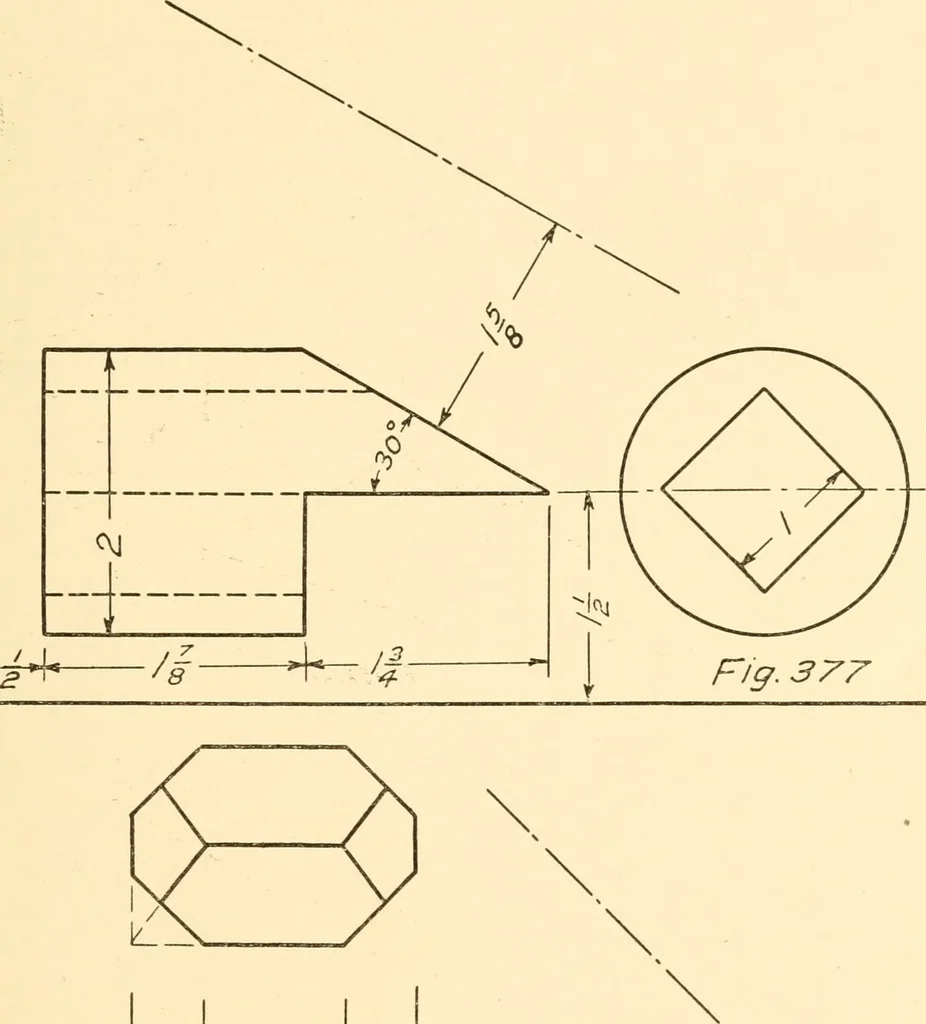

ews given and a com-plete auxiliary view. Fig. 376. 93. Space 5V2 X V. Draw a complete auxiliary view. Fig.377. 94. Space 5V2 X 7. Draw a complete auxiliary view. Fig.378. 95. Space IT x 14. Draw the two views shown and anauxiliary view of the foot pedal shown in Fig. 379. 96. Space 11 x 14.…
