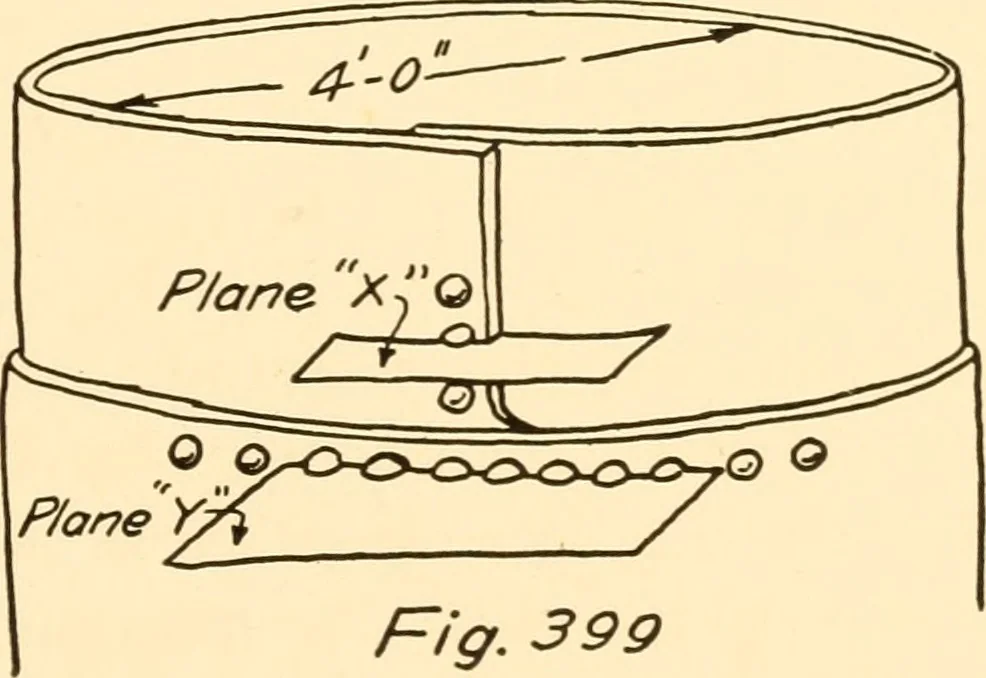

gland to enter one halfthe depth of the stuffing boxwhen nut is screwed onto stud.Show required dimensions. 137. Draw a plan and sec-tion for a double riveted lapjoint as directed by the in-structor. 138. Make a scale drawing of two plates joined together atright angles. 139. Space 5V2 k 7^ Draw… … Fig. 399 160 ESSENTIALS OF DRAFTING 141. What scales are in generaluse for working drawings? 142. What are the first linesinked on a working drawing? 143. Is true projection alwaysused? Explain. 144. Sketch and describe oneform of stuffing box. 145. Space 11 X 14. Makea working drawing showing…
