Cambria steel; a handbook of information relating to structural steel manufactured by the Cambria steel company, containing useful tables, rules, data, and formulÆ for the use of engineers, architects, builders and mechanics; (1919)
Cambria Steel Co, Thackray, George E. (George Edward), b. 1856 · Philadelphia · leaf 412

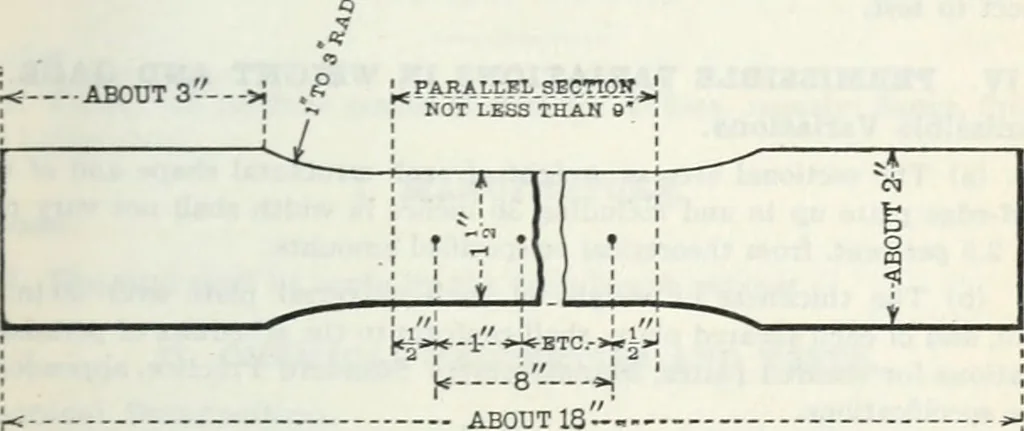

end tests may be made by pressure or by blows. Test Specimens. 12. (a) Tension and bend test specimens shall be taken from the finishedrolled or forged product, and shall not be annealed or otherwise treated, exceptas specified in section 13. (b) Tension and bend test specimens for plates, shapes… … Fig. 1. (c) Tension and bend test specimens for plates and bar3 (except eye-barflats) over 1J^ in. in thickness or diameter may be turned or planed to a diameteror thickness of at least % in. for a length of at least 9 in. (d) Tension and bend test specimens for pins and rollers shall be…
Building · Building, Iron and steel · Steel, Structural
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
