Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 179

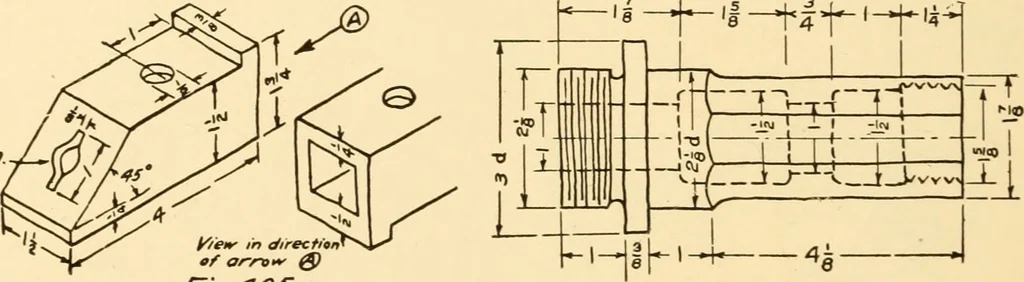

fig. 4o^ 151. Space 5V2 X 7^ Make a detail working drawing ofthe construction shown in Fig. 405, using one full view and suchparts of other views as are necessary to define its true shape. /^ … yiew in directionof Ofrv*- ^ rig. ^05 r/g. ^06 152. Space 5V2 X 7. Make a working drawing of the sleeve,Fig. 406. One half view to be in section. 153. Make a working drawing of the valve shown in Fig. 407.Show a proper treatment for a section on plane ABC. 154. Draw a sectional view of Fig. 408.…
Mechanical drawing
