Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 180

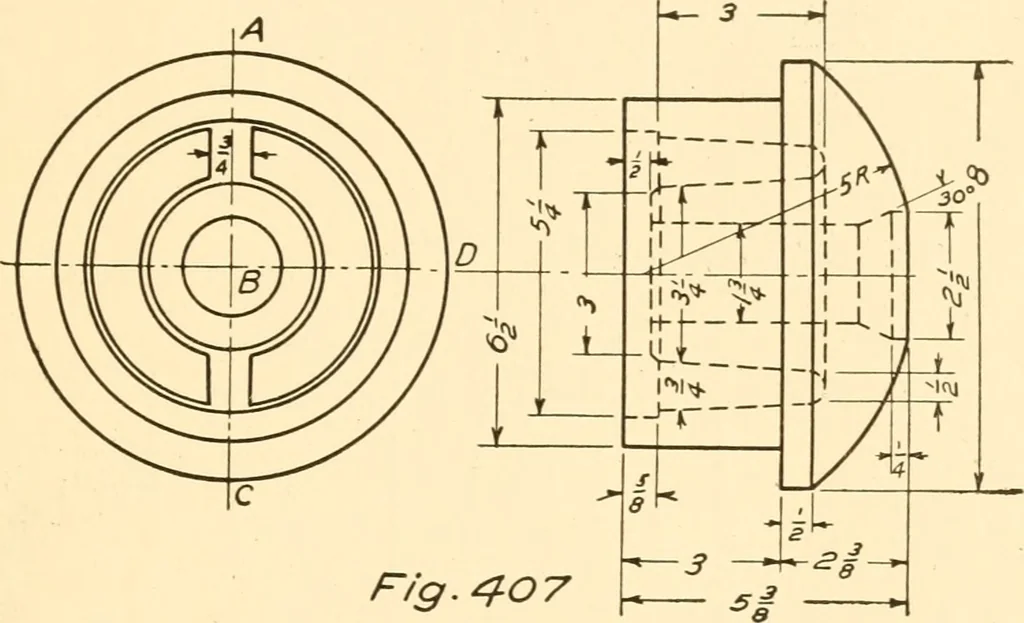

e a detail drawing of the valve body of Fig. 409.One view in section. 156. Make an assembly drawing of the 2 check valve shownin Fig. 409. Draw a sectional elevation and an exterior end view.This drawing may or may not be dimensioned. QUESTIONS, PROBLEMS, AND STUDIES 163 157. The filling-in piece,… … Fig.^07 Scale the Draw 159. The bracket. Fig. 412, is shown one half size,figure, draw full size, and completely dimension. 160. The flywheel, Fig. 413, is shown one fourth size,to a scale of 6 = 1 foot, and completely dimension. 161. The bearing. Fig. 414, is shown one half size. Scale thefigure,…
Mechanical drawing
