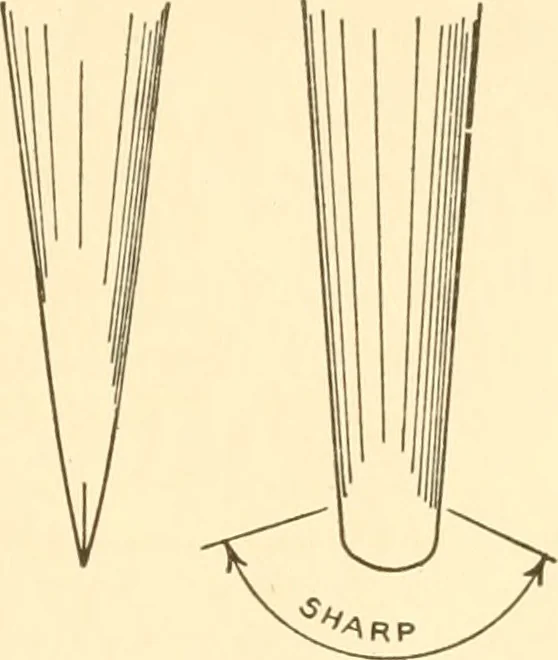

ay be used for many reductions. In such cases use thehalf inch for an inch in drawing one half size; the quarter inchfor an inch in drawing one fourth size, etc. For half size onesixteenth becomes one eighth, and similarly for other divisions. DRAWING INSTRUMENTS AND MATERIALS Fig. 3 shows the… … Fig 7 figuring, laying out, etc., a long conical point should be used.A 2 H pencil will be found satisfactory. For the drawing itself,one 4 H pencil and one 6 H pencil, carefully sharpened, are needed.After removing the wood. Fig. 4, the lead is made slightly conical,Fig. 5, and then formed as in…
