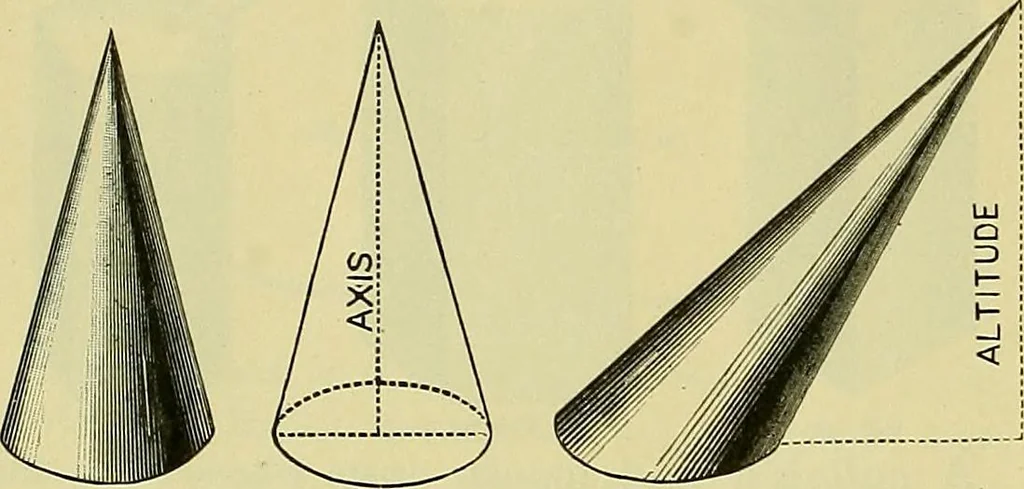

Fic;. 4S. Fli:. 41), Flti. .ill. A cylinder is a solid, bounded by two equalcircular surfaces or bases, and one continuous curvedsurface, Fig. 50. All cross sections of a cylinderare equal to the bases. 38 ROGERS DRAWING AND DESIGN. A cone is a solid bounded by a circular base,and one curved… … Fig. 51. PiQ. 52. Fig. 53. Aright cone. If a perpendicular, droppedfromthe apex of the cone to its base, meets the centerof the base circle, the cone is called a right cone,Fig. 52. The perpendicular in this case is calledthe Axis of the cone. An oblique cone. If the perpendicular fallsalongside…
