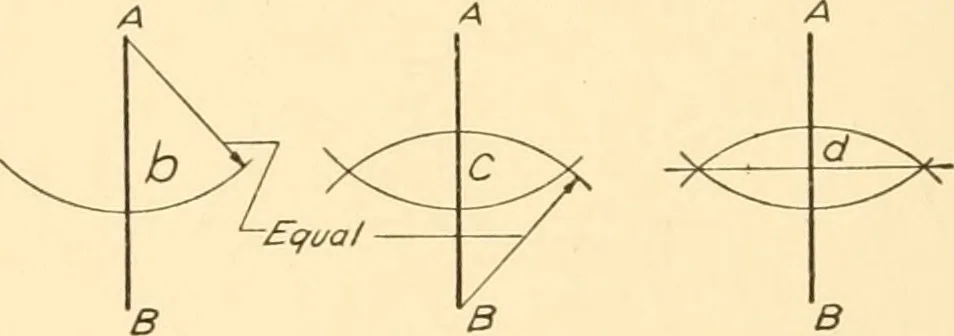

is not necessary to draw the whole of the arcs or the 16 ESSENTIALS OF DRAFTING intersecting lines. The usual appearance of the completedproblem is shown at e. To bisect an Angle (Fig. 33). —Given the angle AOB. With0 as a center, and any radius, draw an arc intersecting the sidesof the angle in… … e ^ Fig. 3 2 Given the line 5J5. It is required to divide the line into fiveequal parts. From one end of the line draw another line, makingan angle with it, such as 55. On 55, using any convenientsetting of the dividers, step off five equal spaces. Join the endof the last space with the end of the…
