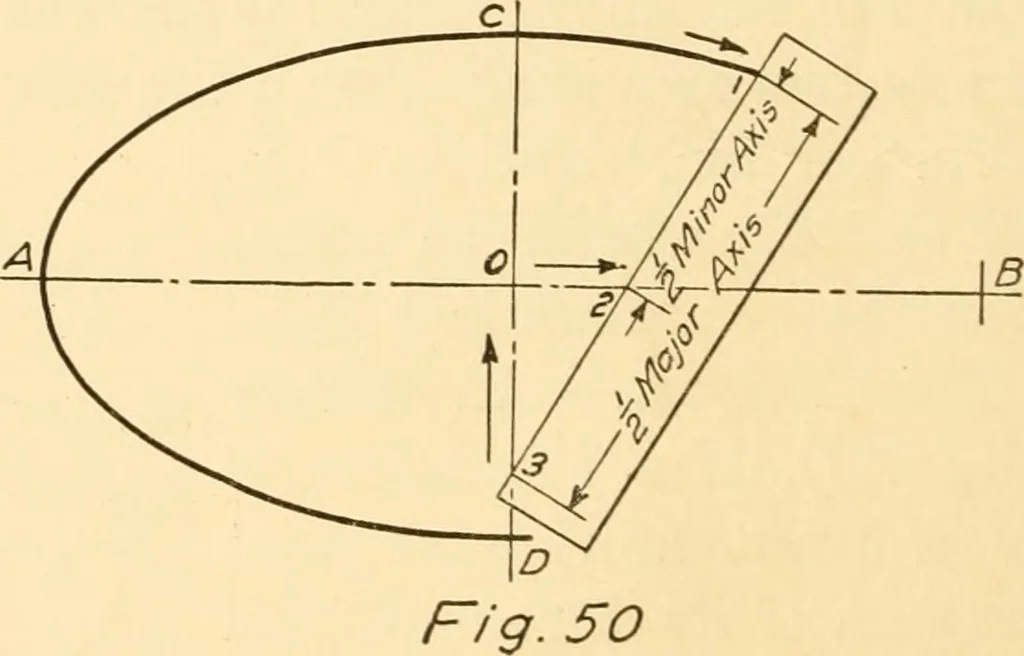

aw an Ellipse bythe Trammel Method (Fig.50).—Given the major andminor axes AB and CD.On a small strip of papermark off one half the minoraxis and one half the major axis, as shown in the figure. Placethe point 3 on the minor axis and the point 2 on the majoraxis. ]\Iake a mark on the paper opposite… … CONSTRUCTIONS 21 is to place the trammel in a number of positions, and makemarks on the paper opposite the successive positions of point 1.To draw a Curve having the Appearance of an Ellipse, by meansof Circular Arcs (Fig. 51). — Given the major and minor axes ABand CD. On the minor axis lay off 03…
