Modification of a commutator motor and its operation as a repulsion motor (1909)
Henry, Donald Alison, Nash, Charles Anson · leaf 38

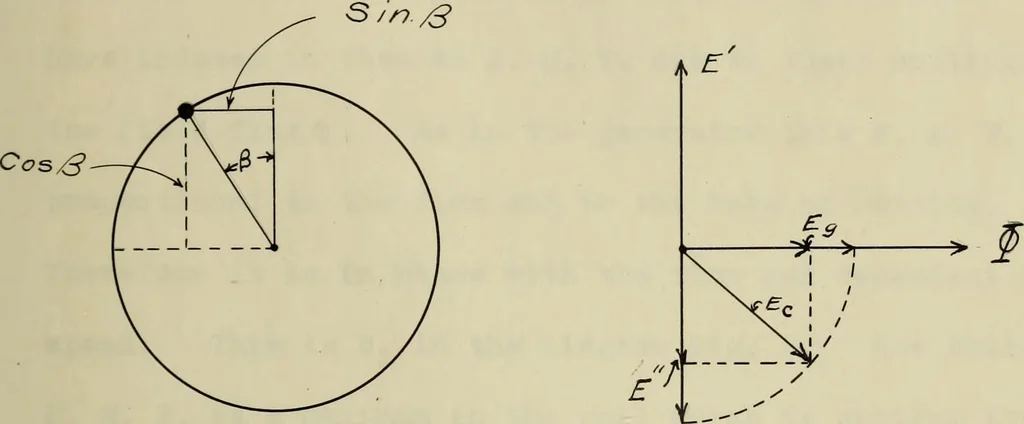

15 lag 90° beMnd ^ in pliase and liave a maxir/rum value propor-tional to tliat of ^ as sliomi in Fig, 3. Hiis is tli©E, M, P. produced by transformer action of tlie macMne, … If now tlie bruslies are shifted so as to rest on the ter-minals of another coil wliicli does not enclose the wholeflux the E, M. P. Einduced between brushes will beless and will be proportional to the ammount of flux en-closed by the coil. If the brushes be moved to a coil Bwhich is in line with…Commutation (Electricity) · Electric motors, Repulsion-induction · Theses
