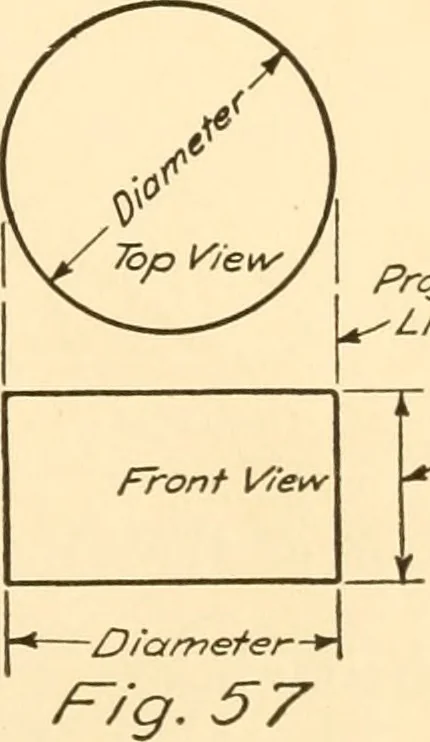

s-means the shapeand proportions of a construction may beaccurately defined. The number of viewsdepends upon the object or construction tobe described. This can be understood byreference to Fig. 57, which shows two viewsof a cylinder. The upper view shows thecircular form and the lower view… … Projection Height- An object requiringNote the arrangement of the 24 ESSENTIALS OF DRAFTING views. The top and front views are included between parallel vertical lines, and the front and side views are included between parallel horizontal lines.The Planes of Projection. — The method of obtaining…
