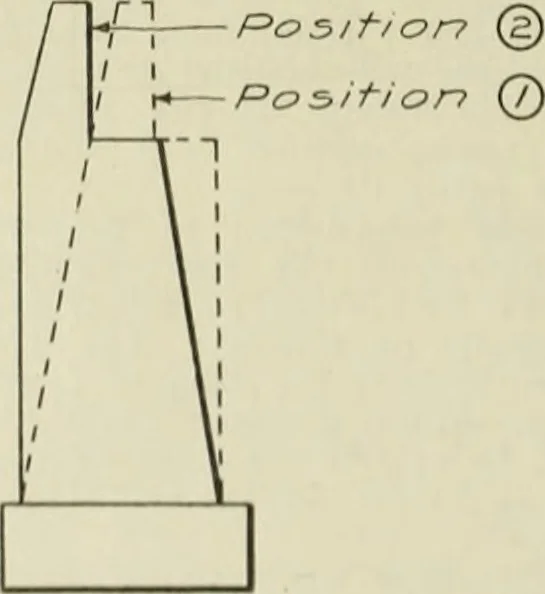

utment, in which tin back wall contains no reinforcement, these forces cannol be moved toward the back ofthe footina by any great amount on account of the large width c of the base of the hackwall, which is made from It. I to 0..r) of It-,. Figure 12 shows an abutment, type Bi, ofthe same height as… … Fig. 11 — Diagram Showing Two Positionsfor Bridge Seat. moved an average distance of <• ins. towardthe back of the footings, by this means de The other defect is due to the absence ■bars in the foundation of type B, and isshown by a comparison of the cross-sectionof the abutment marked Section B…
