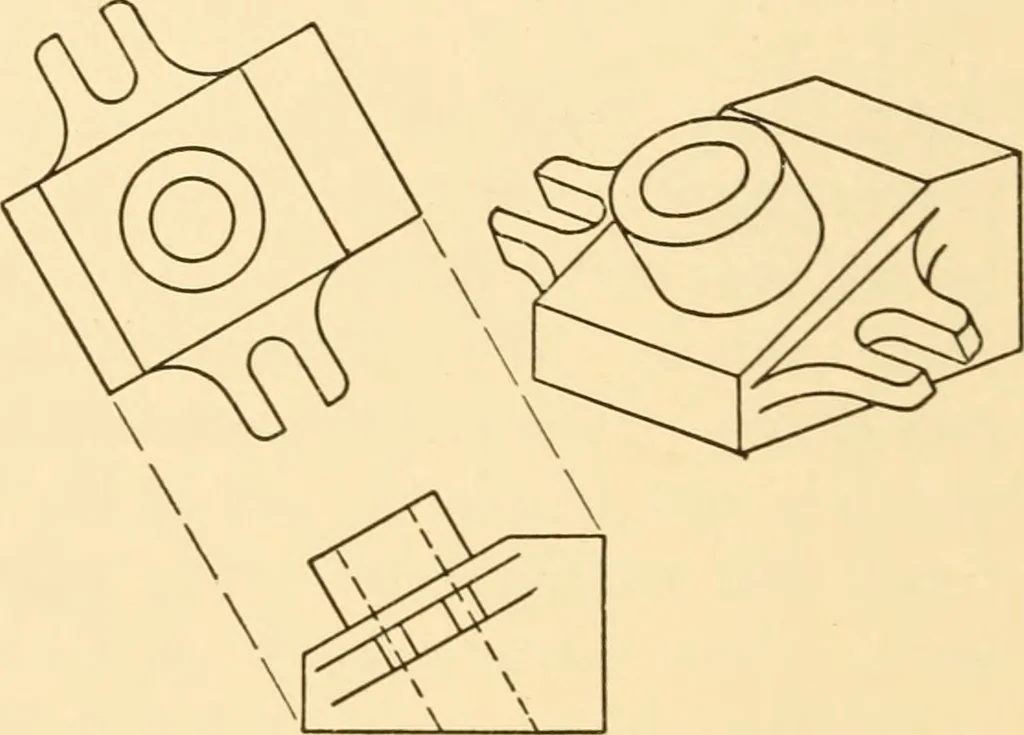

o … /^/gr, 65 F/g. 66 in Fig. 66. Since most of its detail is inclined, a side view andauxiliary view are used. In this way true shapes are shown.Other views are not needed. They would be somewhat difficultto draw and would not add anything to what is already shown.Very good practice is to be had by…
