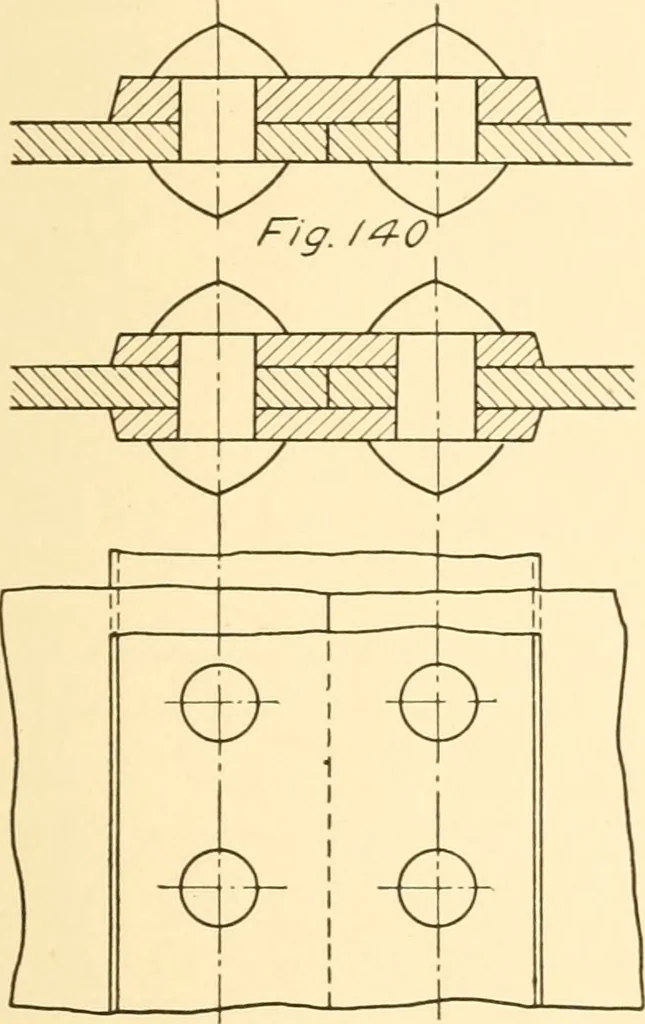

f/g. /33 f/g. /39 Butt Joints. — Three forms of butt joints are shown in Figs.140, 141, and 142. In Fig. 140 a single butt-strap having a thick-ness of about one and one fourth times the thickness of the plates RIVETING 59 may be used. Figs. 141 and 142 show single and double rivetedbutt joints… … F7g. /^/
