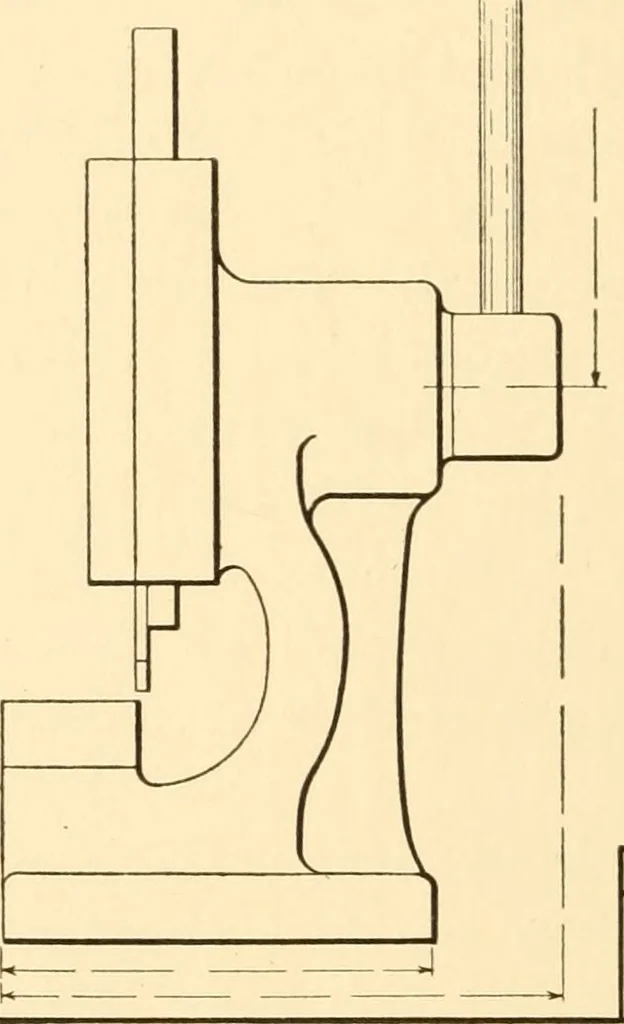

OUTLINE DRAWINGBENCH SHEARS /^/g. /59 ing the machine in its building. Fig. 159 shows one form of sucha drawing. An Assembly Working Drawing is often made when only a fewof the machines are to be constructed. Such a drawing mightcontain a number of part views or sections. It would be com-pletely…
