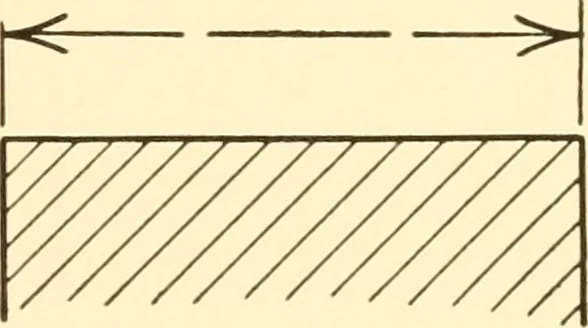

Fig. 163 the dimensions tell the size. These are two operations and bothshould be kept in mind. Dimension Lines. — Dimension lines show where the figuresapply to the drawing. They are terminated by arrow heads.The arrow heads should be about twice as long as they are wide.
