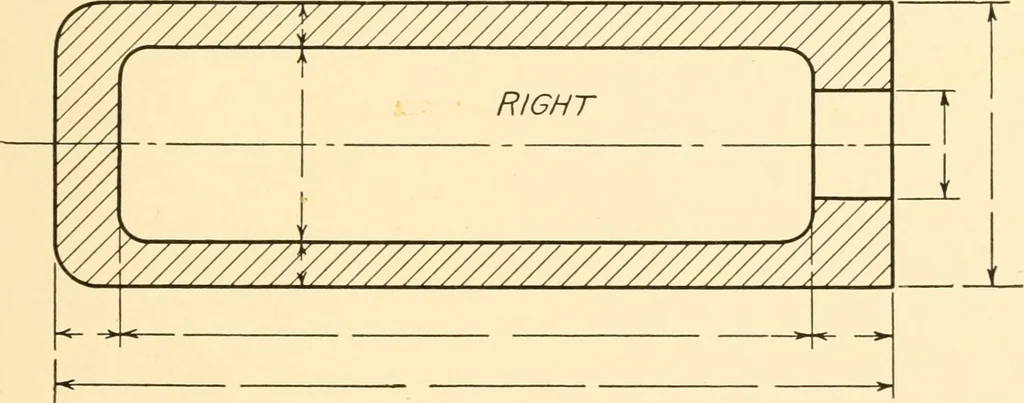

Fig. Id? … Fig. 168 diameters on the end view would result in crowding as well asinconvenience in reading figures placed at an angle. Alwaysgive a diameter in preference to a radius if the part is a completecylinder. For quarter rounds, fillets, and part circles give theradius. General Rules. — To dimension a…
