Smith, Leslie John, 1881- [from old catalog] · New York, The Macmillan company · leaf 14

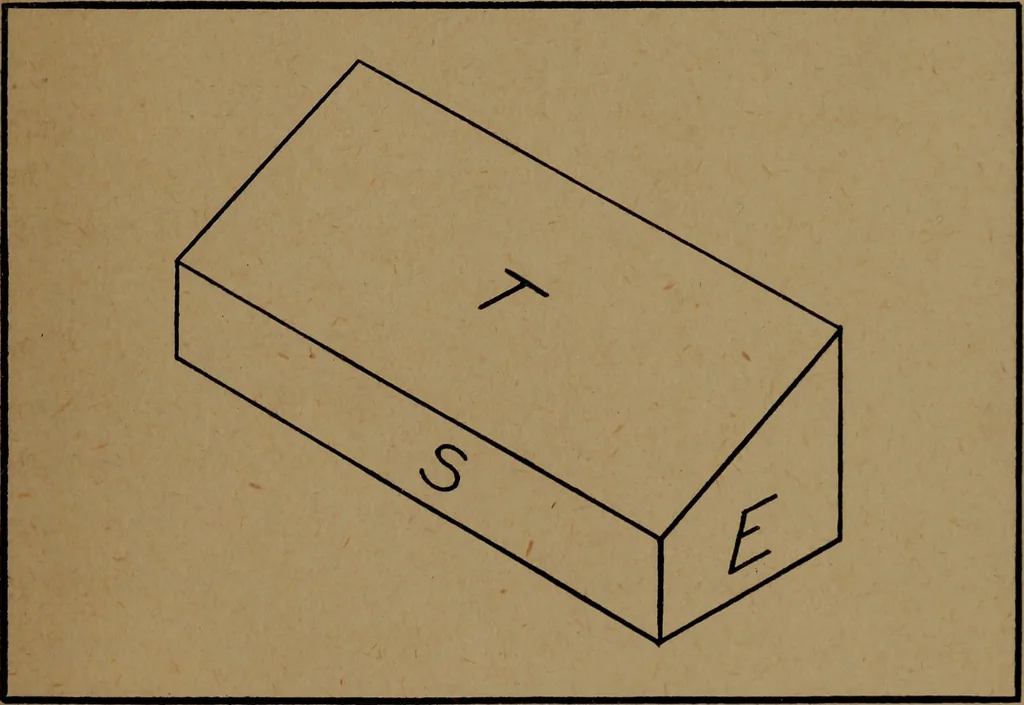

. A complicated drawing to accuratescale cannot readily be made showing three sides of theobject, and so the idea of separate views has come into use. MECHANICAL SKETCHING 3 Names of views. — Figure 2 shows a mechanical drawingof the same block, which is 2 ^ long, f wide, and f highon one side, and… … Figure i. that is, the top view is directly above the side view, andthe end view is directly to the right of the side view,as shown by the light dotted lines which in practiceare not drawn. The lines a and h will be parts of thesame vertical line, and c and d of the same horizontalline. ^ The two…
Mechanical drawing
