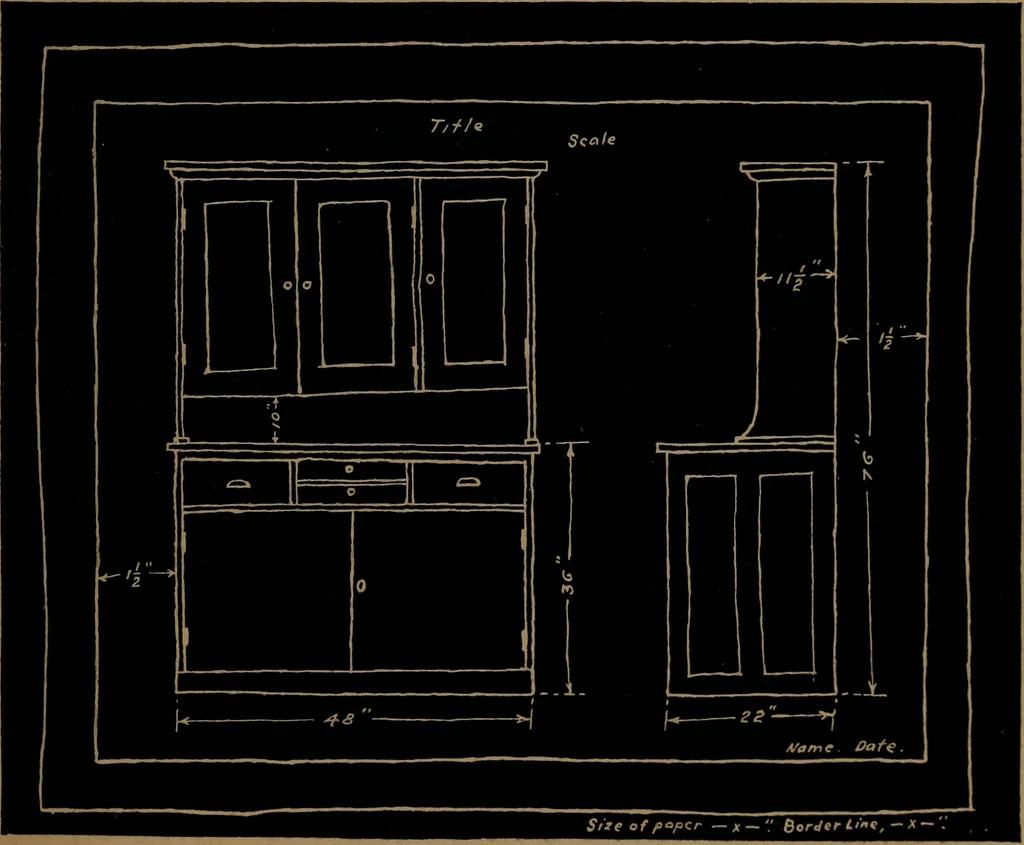

linen bond paper, 8i X ii, is satisfactoryfor these exercises, or, better still, pads of the heavier whitedrawing paper of about the same size, or preferably alittle larger, which can be had through the bookstores.The drawing can be done on any smooth table or desk; OUTLINE FOR A SHORT COURSE IN… … Figure ii. paper, or on a small uniform size sheet given out for thepurpose. Make height of letters and figures the same asin Fig. 9. Exercise 2. —Make a mechanical drawing of the halfdovetail joint, using the dimensions in Fig. 3 and showing 24 ESSENTIALS IN MECHANICAL DRAWING top and side views…
