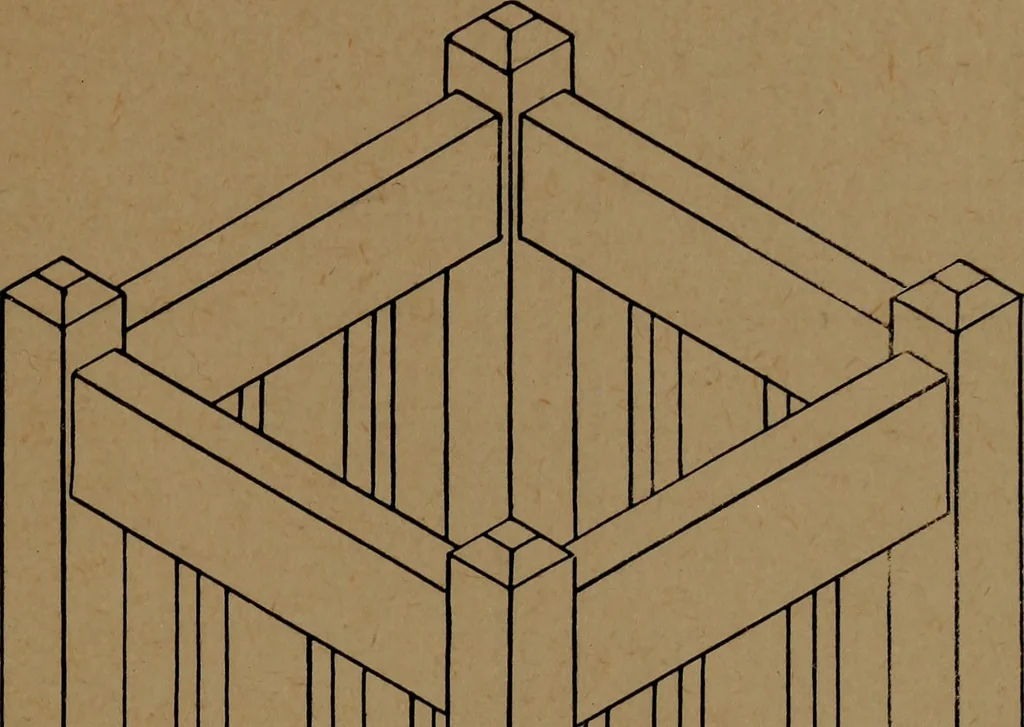

Figure 27. drawing paper to within V of the border line. Put titleat top. Exercise 4. — Mechanical drawing of blacking stand(Fig. 15). Show side view of stand open and end view.Follow the general directions given in Exercise 6 on page24. Use a border line 11 X 15. Print out table ofmaterial…
Mechanical drawing
