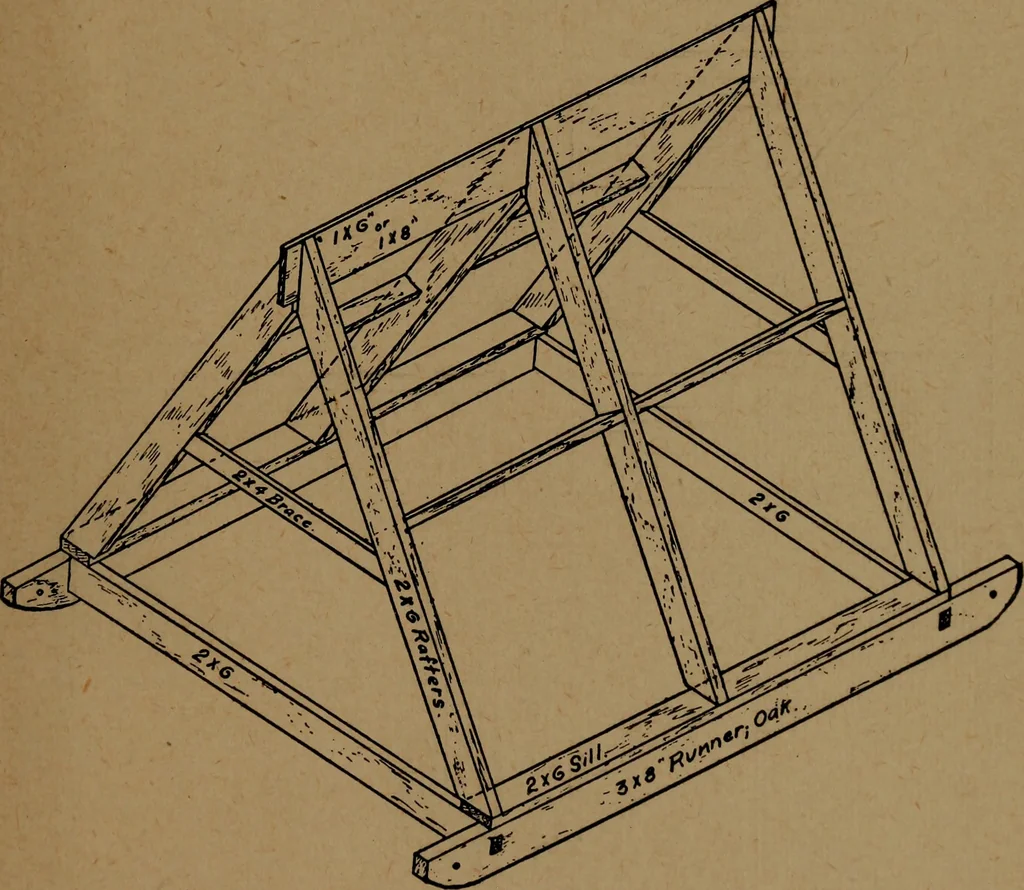

o SHORT COURSE IN DRAWING WITH INSTRUMENTS 51 drawn that naturally rest on the floor, a heavy line isdrawn to represent the surface of the floor. Border line11 X 15. Place title above the views. The sawhorseshould be drawn to the scale, 3 = i. Draw a heavyline to represent the floor. … Figure 32. Exercise 8. —; Draw side and end views of a portablepig cot (Fig. 31) with part of the roof boards arid sidingcut away to show the framing. Scale, f= I^ Use the11^ X 15 border line. Place the title above the views.Figure 3 2 shows the framework of the pig cot. First drawthe end view of…
Mechanical drawing
