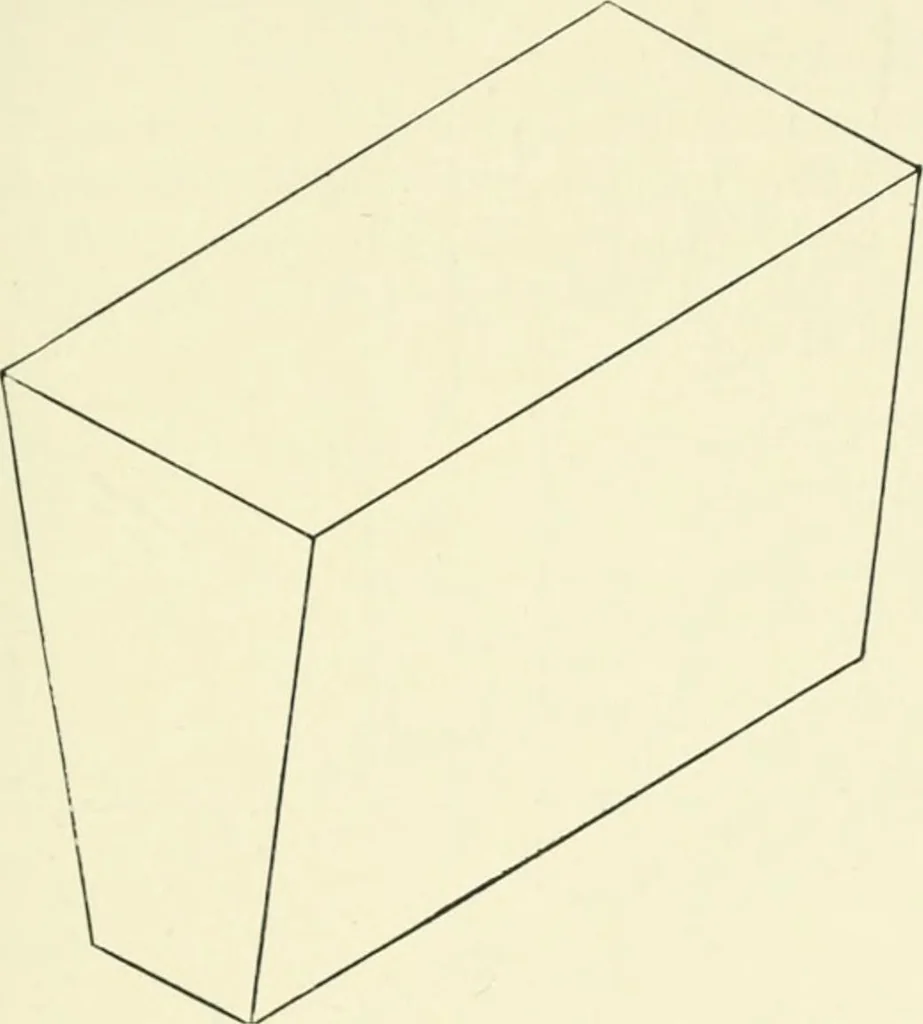

at materials are to be used, how they are to be fastened together, andwhat finish you would suggest for the surfaces. Print carefully, usingsome simple single-stroke free-hand lettering. The dimensions of the wedge shown below (in isometric i)rojection) are asfollows: The larger base is a rectangle… … a) Draw the horizontal and vertical projections (top and front views) of the wedge (actual size) in the follo^\^ng position: its larger base is uppermostand \ inch below the horizontal plane of projection; one corner of thisbase is in the vertical plane of projection, and the longer edges of the…
