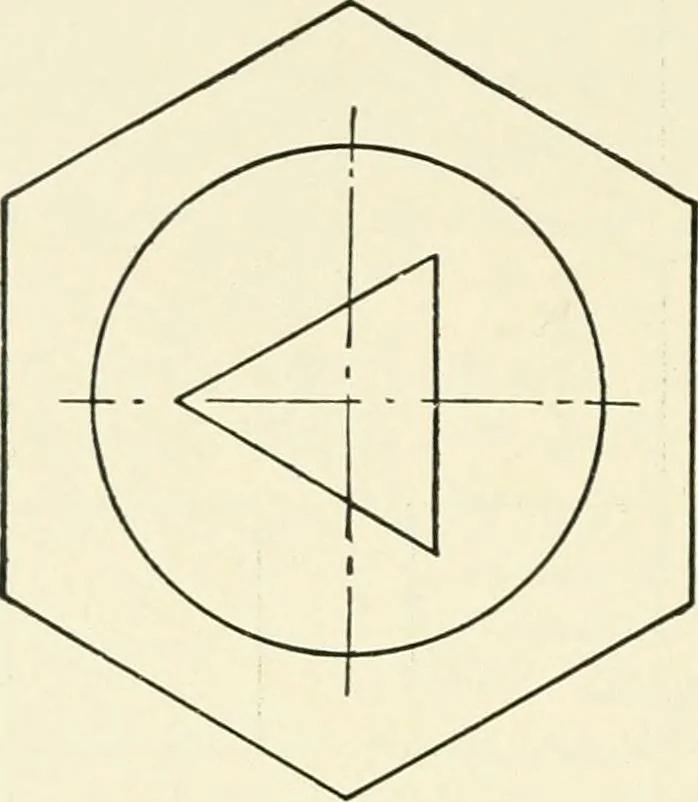

e length of each block and the shape of its cross-section. (b) What is represented, by the dashed lines at the top, and what at the bottom of the vertical block ? 91 Page 1 DRAWING—MECHANICAL Saturday, June 26 1920 9 a.m. Two hours Candidates taking the examination in Mechanical Drawing are… … 9- (THIS EXAMINATION IS CONTINUED ON PAGE 9) Page 2 Make a working drawing of the pen tray. Include three views drawn to one-half size; all necessary dimensions; brief printed notes describing materials,finish, and the necessary fastenings; a brief printed title, Pen Tray, scale,name, and date.…
