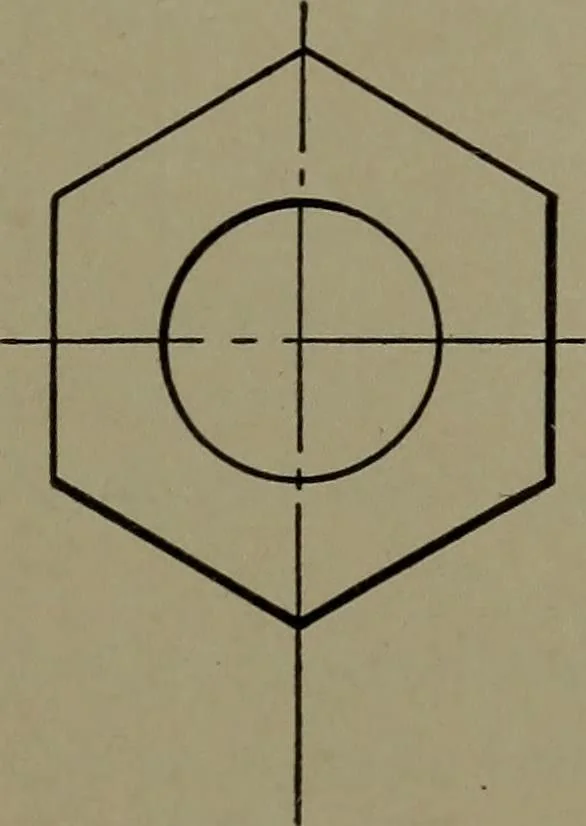

Fig. 14. Location of Shade Lines forCircular Piece … r Fig. 15. Location of Shade Lines forHexagonal Piece Dimensions. It is easy to spoil an otherwise good drawing byloose and careless methods of putting on dimensions. Systematicand careful effort must constantly be used to make every dimension 10 MACHINE DRAWING upon a drawing absolutely clear. To…
