Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 119

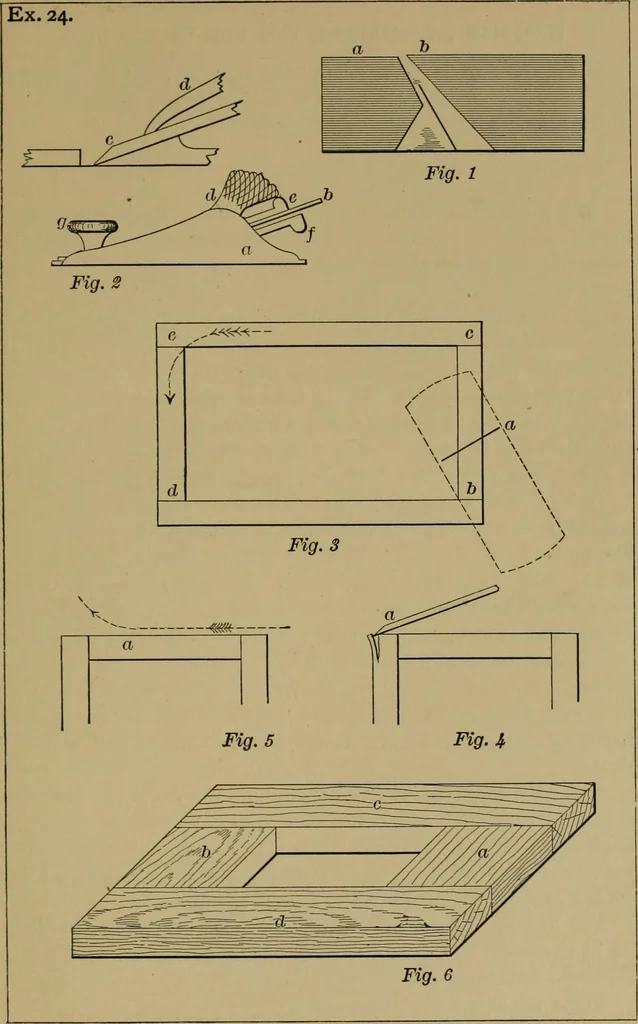

od. Herethe greatest care must be taken to prevent splitting off pieces inthe manner shown in Fig. 4. In Fig. 5 the broken line shows thedirection which the cutting edge should take, always raising theplane when nearly across. Plane from the edges toward the mid-dle, and, if the middle becomes… … 118 COMPOUND JOINTS. Exercise 25.—Hinging the Top to tlie Box. Material.—1 middle-size, wrought-brass butts, f brass screws to fit.Work.—1. Prepare the upper edge of the box for the top. 2. Smooth the top piece and square its back edge. 3. Fit and fasten the hinges. 4. Finish the edges of the top…
Woodwork (Manual training) · Wood
