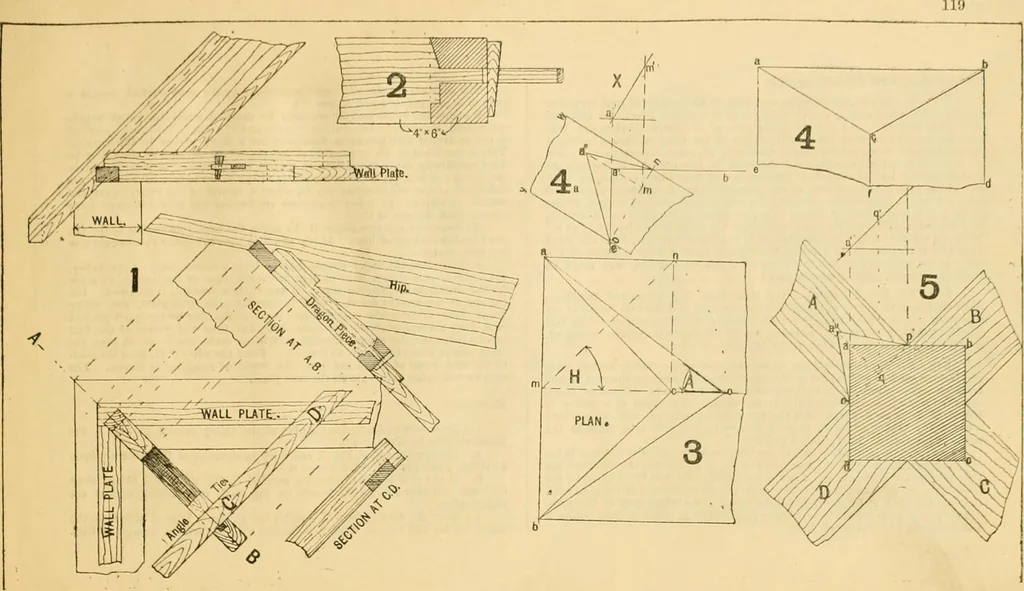

cut to determine.Exercises. 1. If the sides of the roof (Fig. 4), be inclined 45, determine the pitch of 2. Determine the true length of the line a m, a m Fig. 4a. 3. Let the hips in Fig. 4 be 9deep and 3 thick, inclination of roof 43,suppose the hips to be let into the king a little, show the… … HEXAGONAL AND VALLEY ROOFS. Fig. 1. Shews the elevation and plan of an hexagonal roof hipped too point The Game principle applies to this as to a square plan. To find theHue shape of a side as a b v. turn the eide a v shown in elevation intothe plan, (see dotted lines/ this is the length of the…
