Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 135

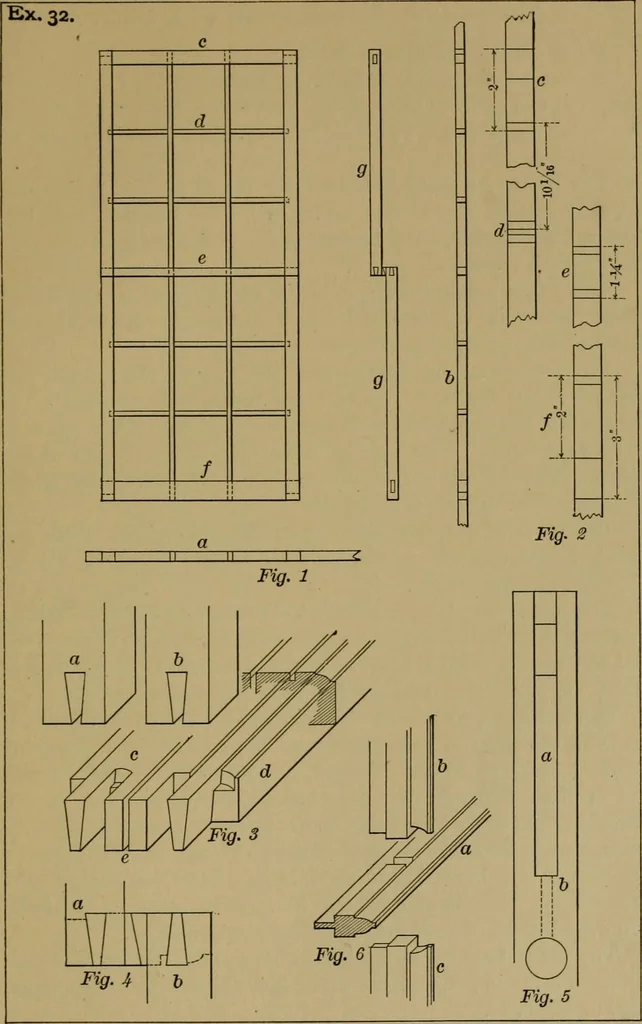

tedtightly, as shown in Fig. 4. The vertical bars are mortised through the rails, and have smallmortises, ^ square, for the insertion of the horizontal bars, whichare made the full width of the sash, but sawed into separate piecesjust before putting together, as shown in Fig. 6. Excepting those of… … 134 ELEMENTS OF HOUSE BUILDING. Exercise 33.—Construction of a Door. Doors are either batten or panel. Batten-doors are made by fastening several tongued and groovedboards to two or three cross-pieces, with clinch-nails or screws. Ifheavy, the doors should be braced with diagonal pieces between…
Woodwork (Manual training) · Wood
