Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 143

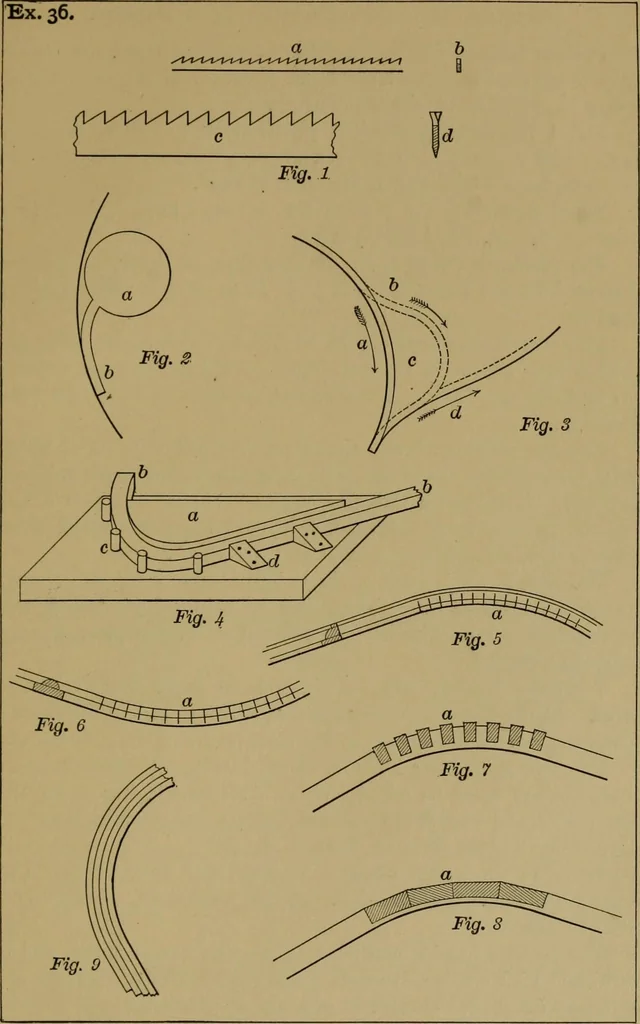

over the bentportion. Fig. 8 shows another method of arriving at the same re-sult, in which the string acts as a sort of veneer to the pieces, a.Where a bend and twist are to be given, the wood may be made upof several thin pieces glued together, as in Fig. 9. In bending wood, compress the fibers… … 142 WO OD- WORKING. Exercise 37.—Construction of a Pattern. Pattern makers receive drawings of finished iron-work ; fromthese drawings tliey must lay out and construct tlie wood-work nec-essary to obtain molds for the castings. Fig. 1 represents a cast-iron pillow-block, to receive an inch-shaft ;…
Woodwork (Manual training) · Wood
