Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 67

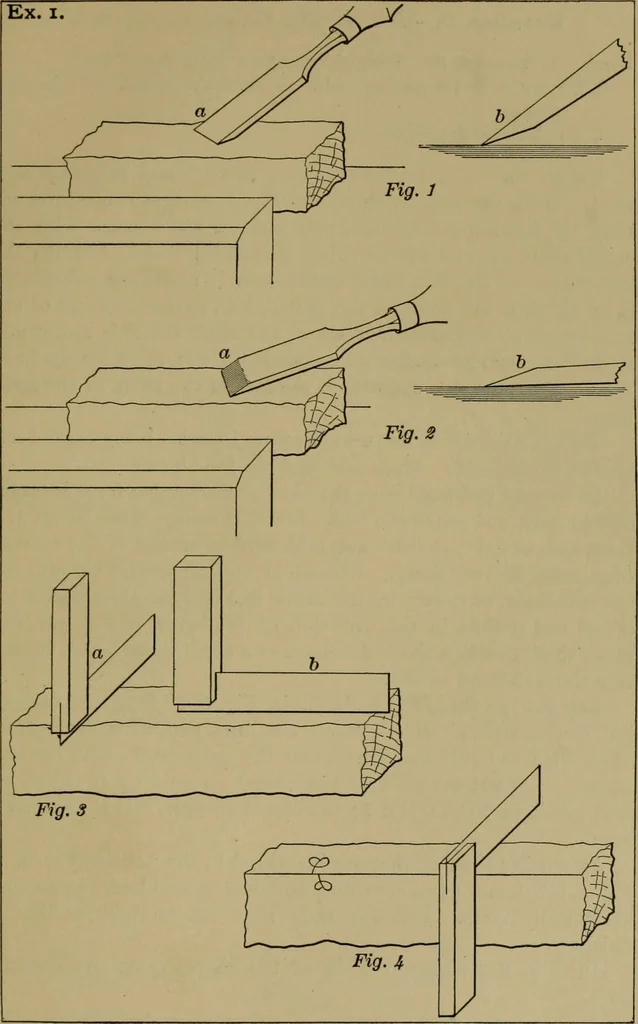

testthe angle between the sides with the try-square, as shown in Fig. 4.Care must be taken to hold the try-square true to the face. When the second side is finished, mark it and the face with apencil, as shown in Fig. 4. The edge of the block, toward which themarks point, is the face-edge, from… … 66 ORDINARY TOOLS. Exercise 2.—Use of the Chisel continued. Work.—1. To mark the block of Exercise 1 for width of face. 2. To cut the remaining sides so that the block will be 1^ square. 3. To chamfer the edges. Fasten the block in the vise with face up and face-edge out-ward. Hold the rule as…
Woodwork (Manual training) · Wood
