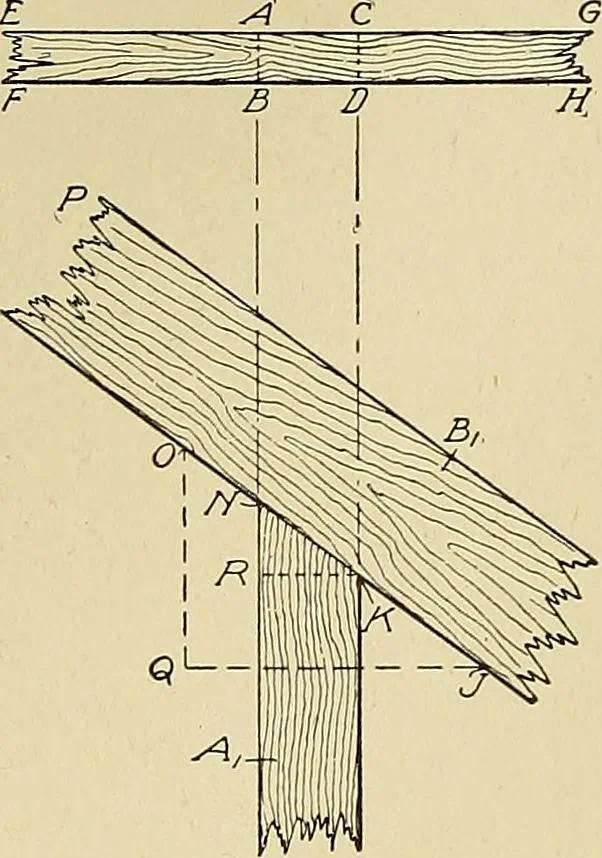

herest; ^ 5 Z) C is a plan of the stud, and the rafter is shown at E F H G.We will take the distance F H, or the run of the part of the raftershown, as one foot exactly. Now if A^ and B^ represent a side eleva-tion of the rafter and stud, the run of the part of the rafter shown isthe distance J Q,…
